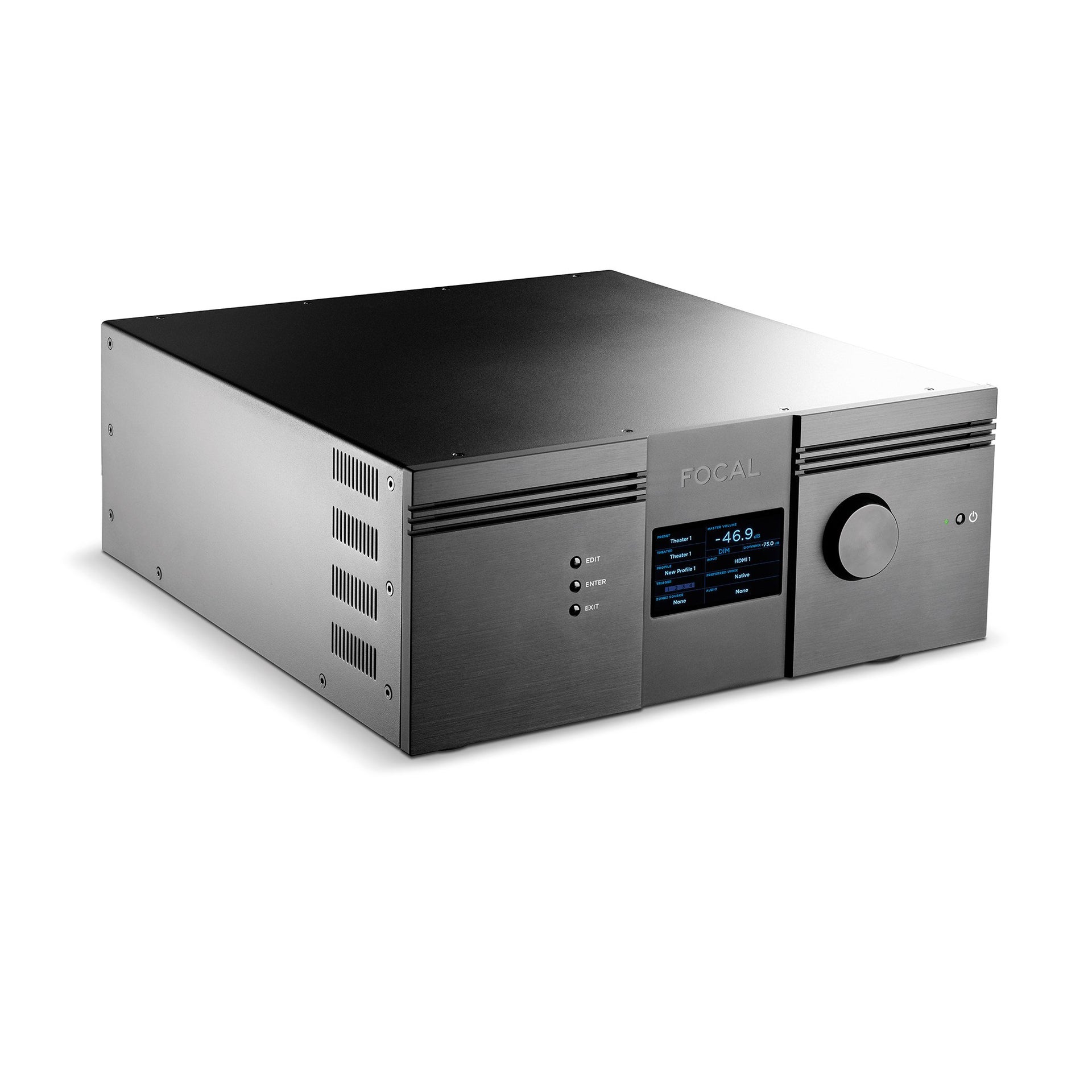

Audio-video processor and amplifier

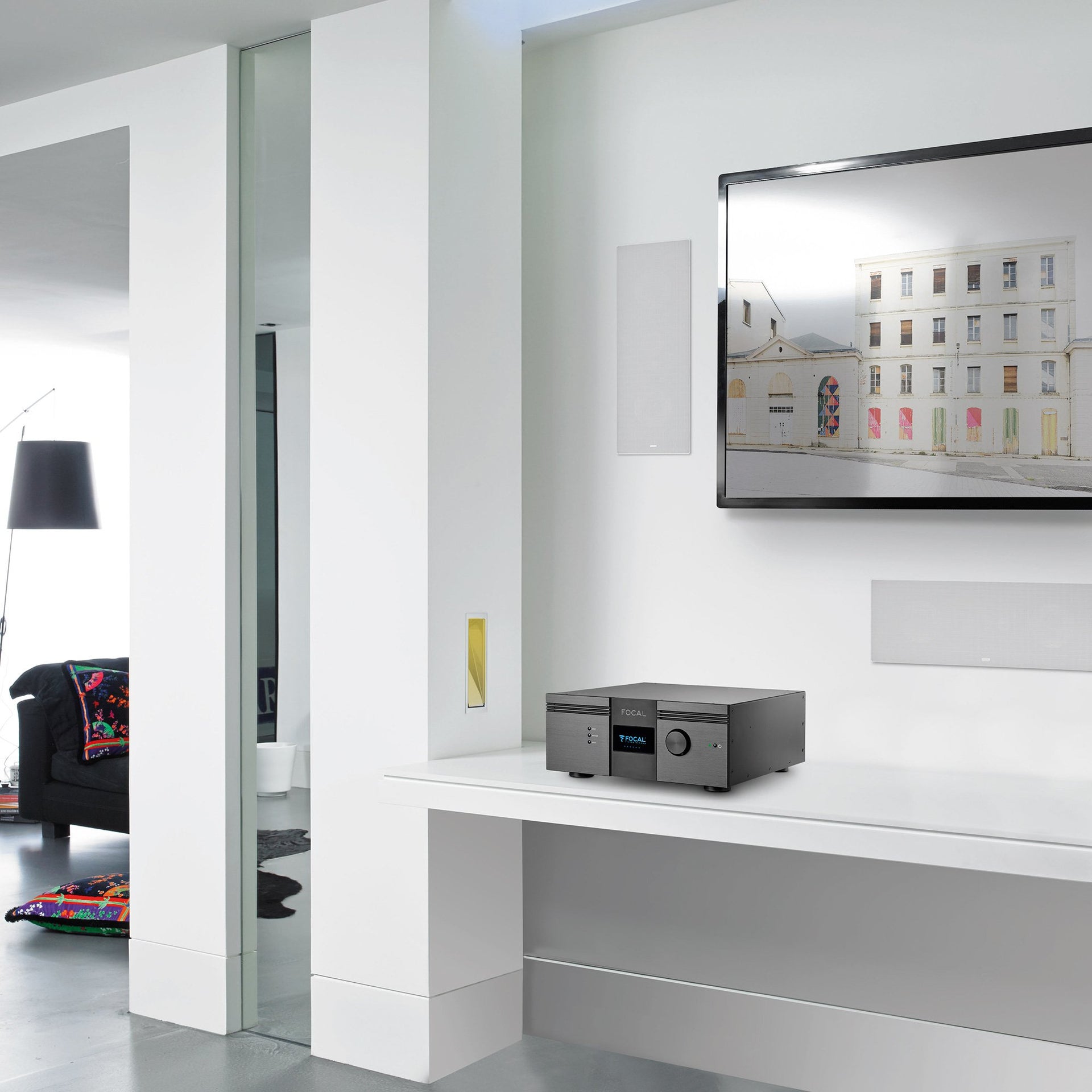

Like any true conductor who draws the best out of his orchestra, Astral 16 draws the very best out of high-fidelity and in-wall/in-ceiling loudspeakers by perfectly coordinating all the components within a sensational Home Cinema installation.
Integrating a Class D Pascal Audio amplifier, Astral 16 has 16 channels, of which 12 are amplified and 4 are pre-amplified (balanced XLR outputs) and dedicated entirely to audio (filtering, equalization, bass management, etc.).
This rock-solid foundation is your official invitation to an immersive journey through images and sound of unrivaled quality (sampling frequency supported up to 192 kHz).
All audio formats
Astral 16 covers all audio formats: Dolby Atmos®, DTS:X™, Auro-3D® etc.
Equipped with technology that allows adjustments based on room characteristics (Room calibration, with Dirac Live®) and delivered with a calibrated measurement microphone, Astral 16 can be fine-tuned to suit all possible acoustical environments and desires.
Astral 16 is compatible with Control4, Crestron, Elan, Savant and RTI. It benefits from the potential of these leading interfaces to provide remote control over your entire system.
Endless configuration option
Astral 16 comes with an app available on the App Store (via iPad) to drive the system you want room by room, as well as technical support (Remote Monitoring) for equipment diagnostics at any time.
- Unlimited number of settings
- Remote monitoring function
- System calibration by Dirac Live® - analysis and active correction of the room’s acoustics and the multichannel system
- Rack mounting kit supplied with flexible installation
- Dedicated iOS application with simple and intuitive controls
|Type||16 channel audio-video processor and amplifier|
Multichannel / Surround Processing
|Decoding / upmixing channels||up to 16 channels|
|Input sampling rate supported||up to 192kHz|
20 Parametric EQ per channel
6-12-18-24-36-48dB/oct filter slopes

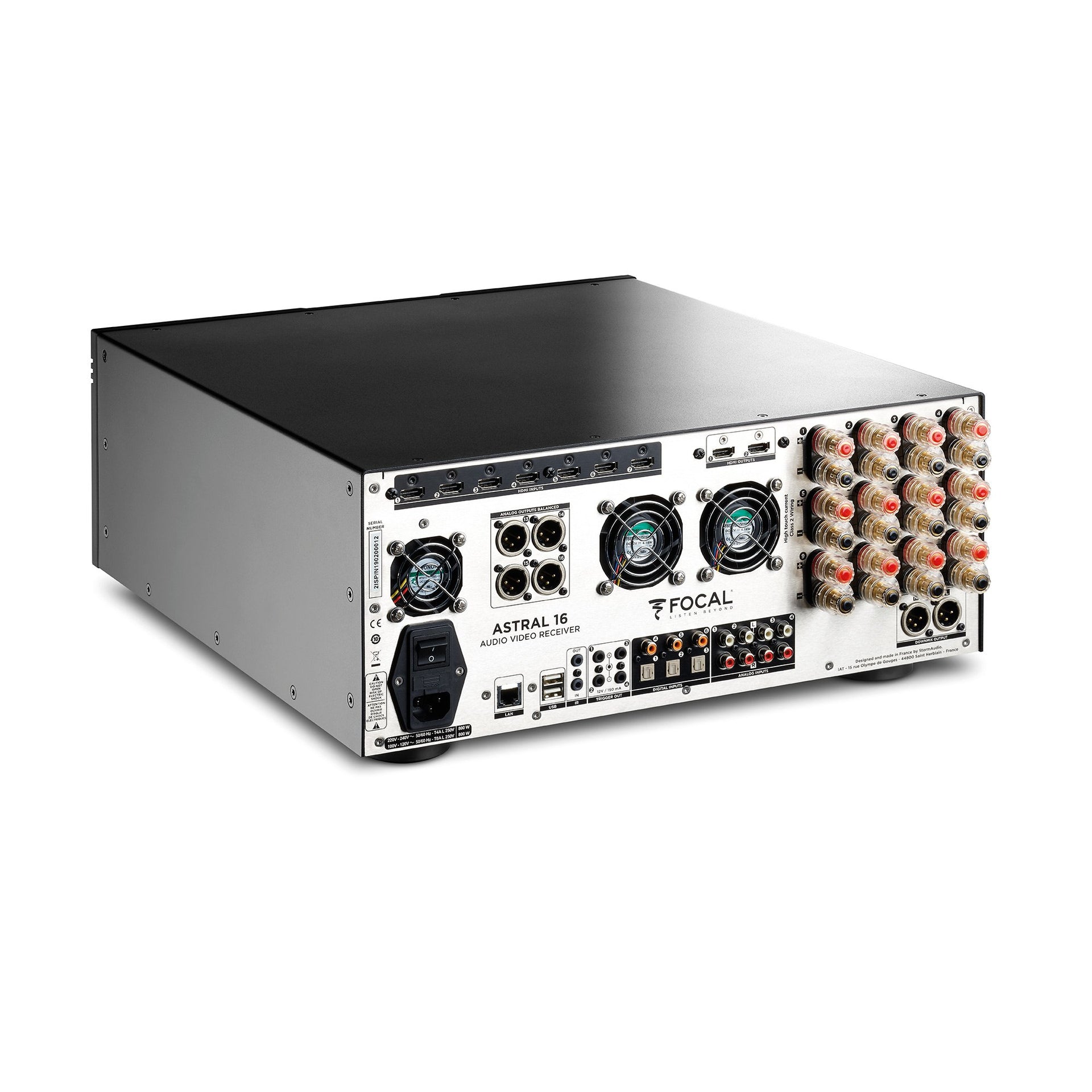

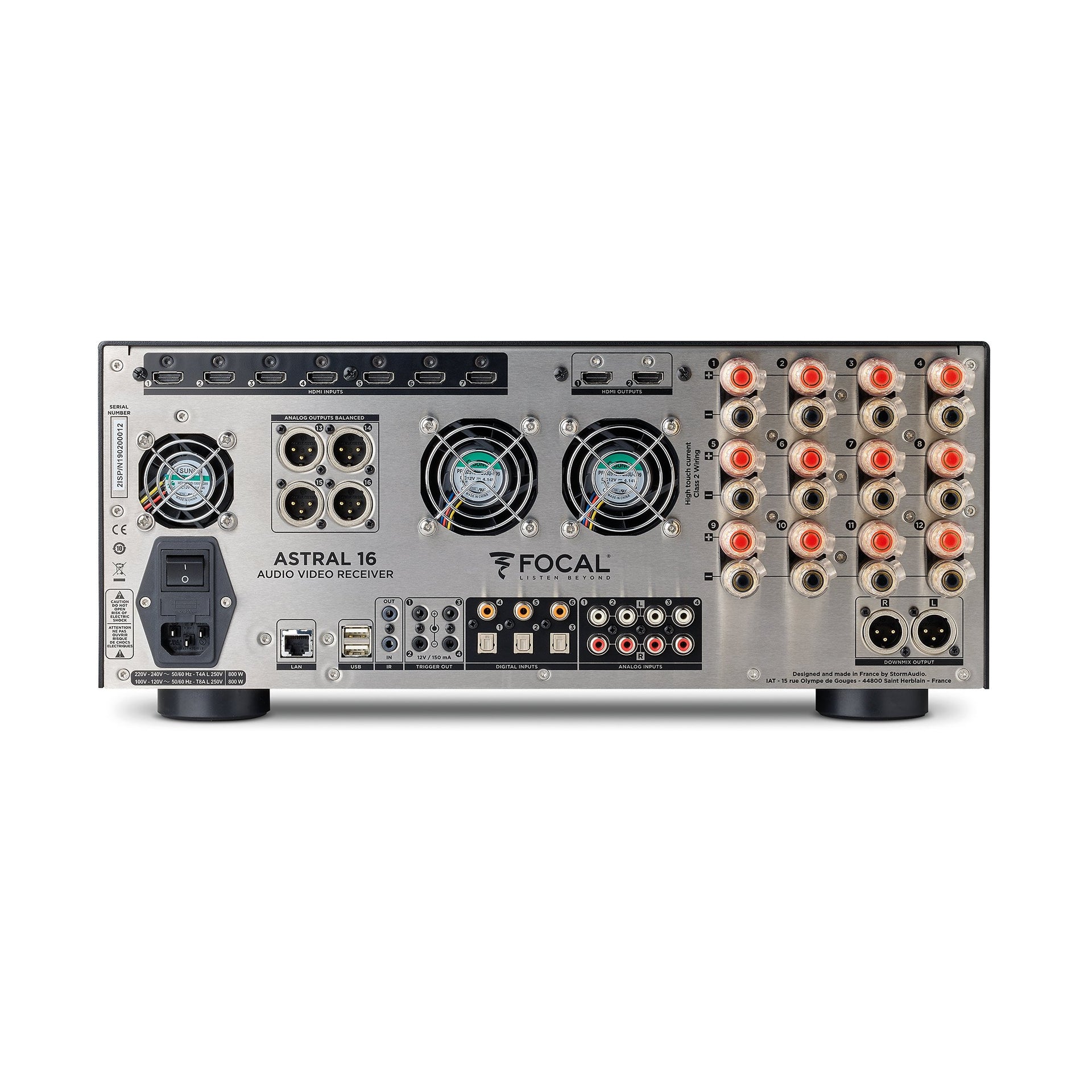

|HDMI inputs||7: HDMI 2.0 / HDCP 2.2|
|Supported video format||Up to 4K UHD|
|Color Space and Subsampling||4:4:4, 4:2:2, 4:2:0|
|Digital input||3 x coaxial, 3 x optical|
|Analogue stereo inputs||4 x RCA inputs|
Amplified Audio Outputs
|Amplified main outputs||12|
|Analog main outputs, balanced||4 x XLR|
|Stereo downmix outputs, balanced Technology||2 x XLR|
|Amplified channels||Class D|
|Continuous power output, per channel, a 0.1% THD||8Ω / 4Ω / 2.7Ω|
|3 channels driven simultaneous||200W / 400W / 650W|
|6 channels driven simultaneous||200W / 350W / 350W|
|12 channels driven simultaneous||200W / 300W|
|Continuous power output, per channel, a 1% THD||8Ω / 4Ω / 2.7Ω|
|3 channels driven simultaneous||250W / 500W / 725W|
|6 channels driven simultaneous||250W / 500W / 500W|
|12 channels driven simultaneous||250W / 300W|
|THD (from 1W to P-rated -1dB)||<0.03%|
Control Inputs / Outputs
|USB type A||2|
|Output trigger control||4 (out)|
|IR remote ports, in/out||1 / 1|
Control / Custom Installation
|Web-based product configurator|
|TCP/IP API based control|
|Focal Remote iPad control application|

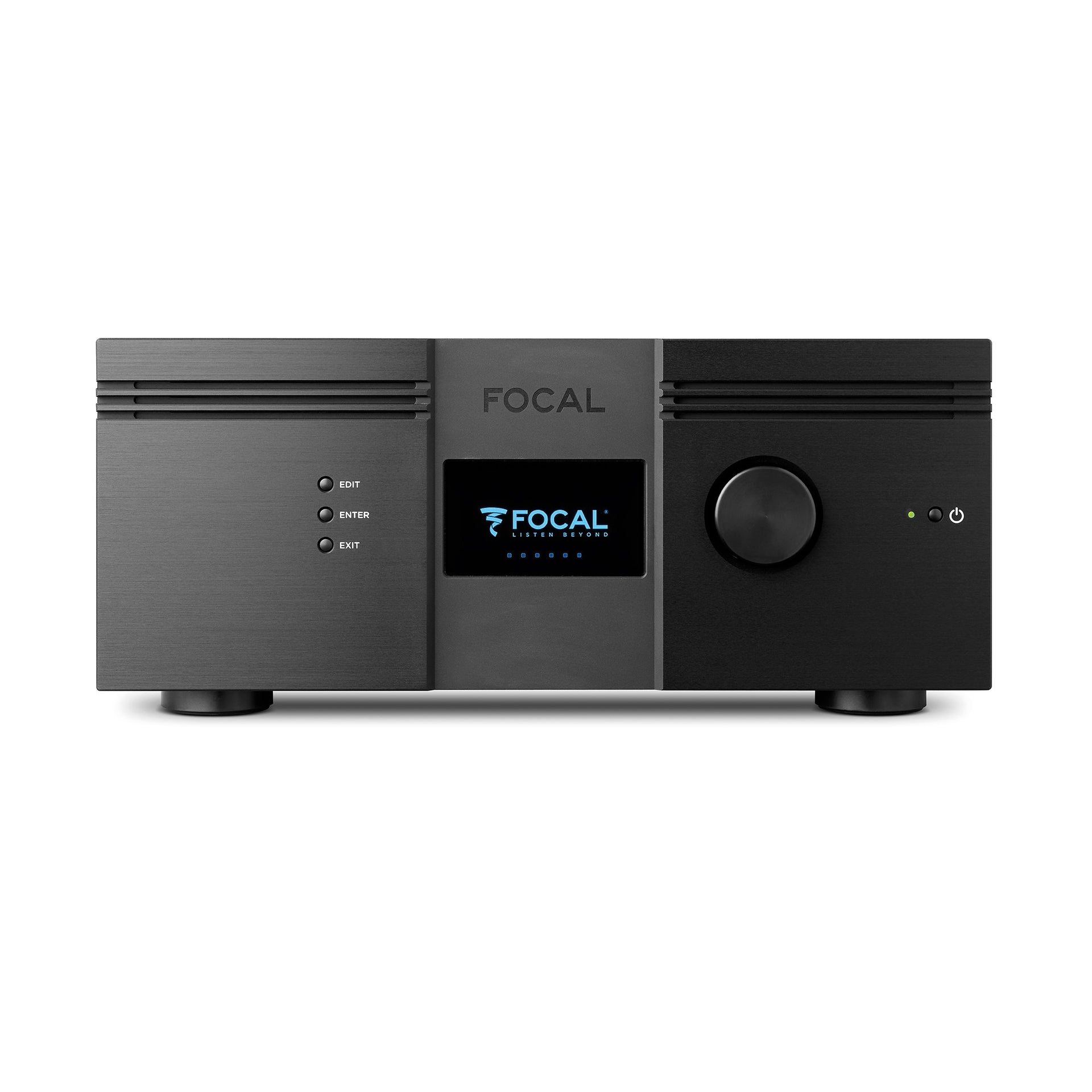

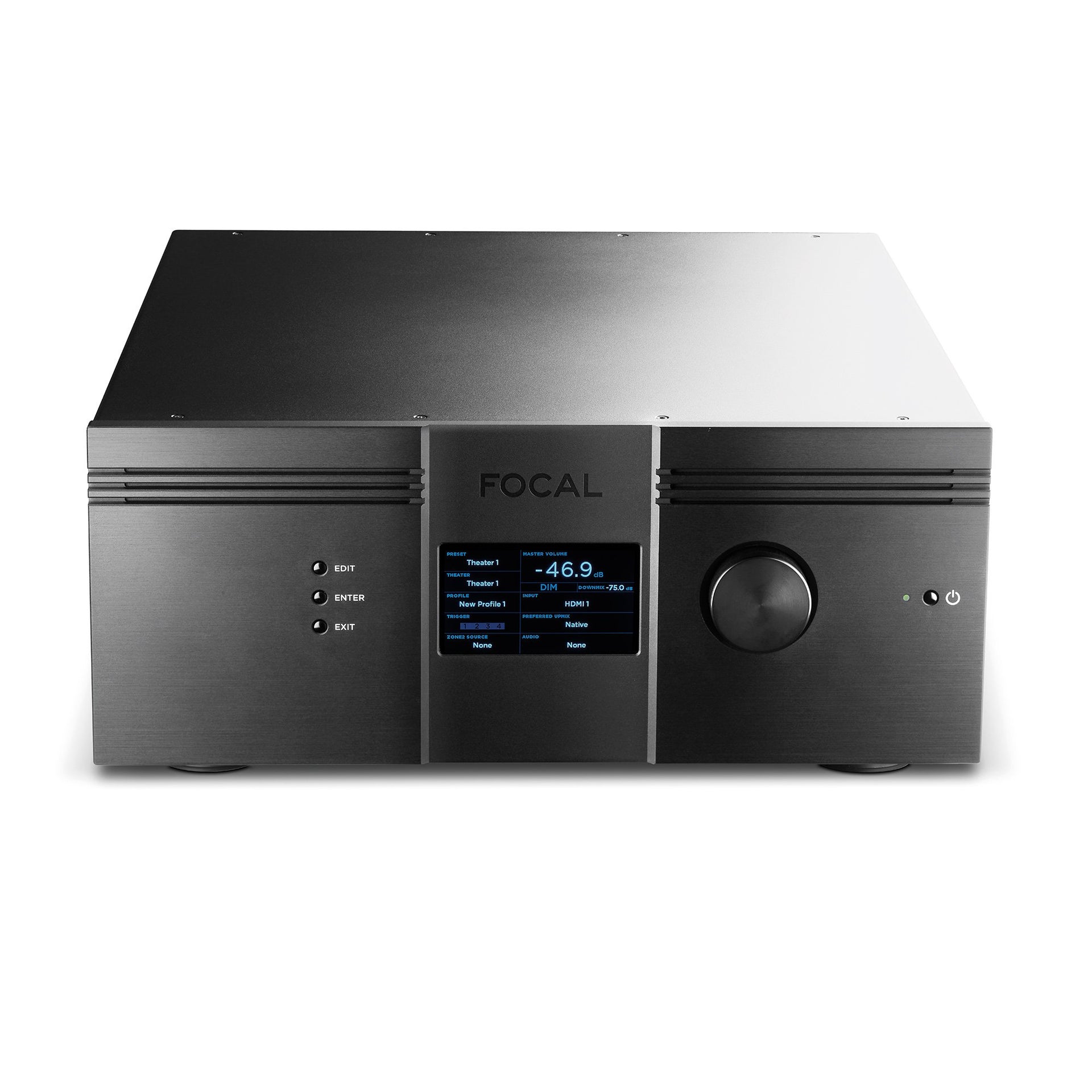

|Front panel display||Crestron, Control4, Savant, RTI home automation TFT 4.3"|
|Voltage range||100V to 240V|
Dimensions & weight
|Net weight with stands||20.0kg|
|Net weight with accessories for Rack kg||23.0kg|
|Dimensions with stands (h x w x d) cm||19.10 x 47.90 x 49cm|
- Focal Astral 16 Home Cinema Processor & Amplifier
- Calibrated measurement microphone and tripod
- 10m cable with infra-red captor
- mounting kit
