Price:
$280
*Check with our team or your local store for availability.

We guarantee that all of our stock is 100% genuine,
New Zealand sourced stock, with full local warranty.
New Zealand sourced stock, with full local warranty.
Description
- Offers a reference presentation with a clean, clear, crisp and fast delivery

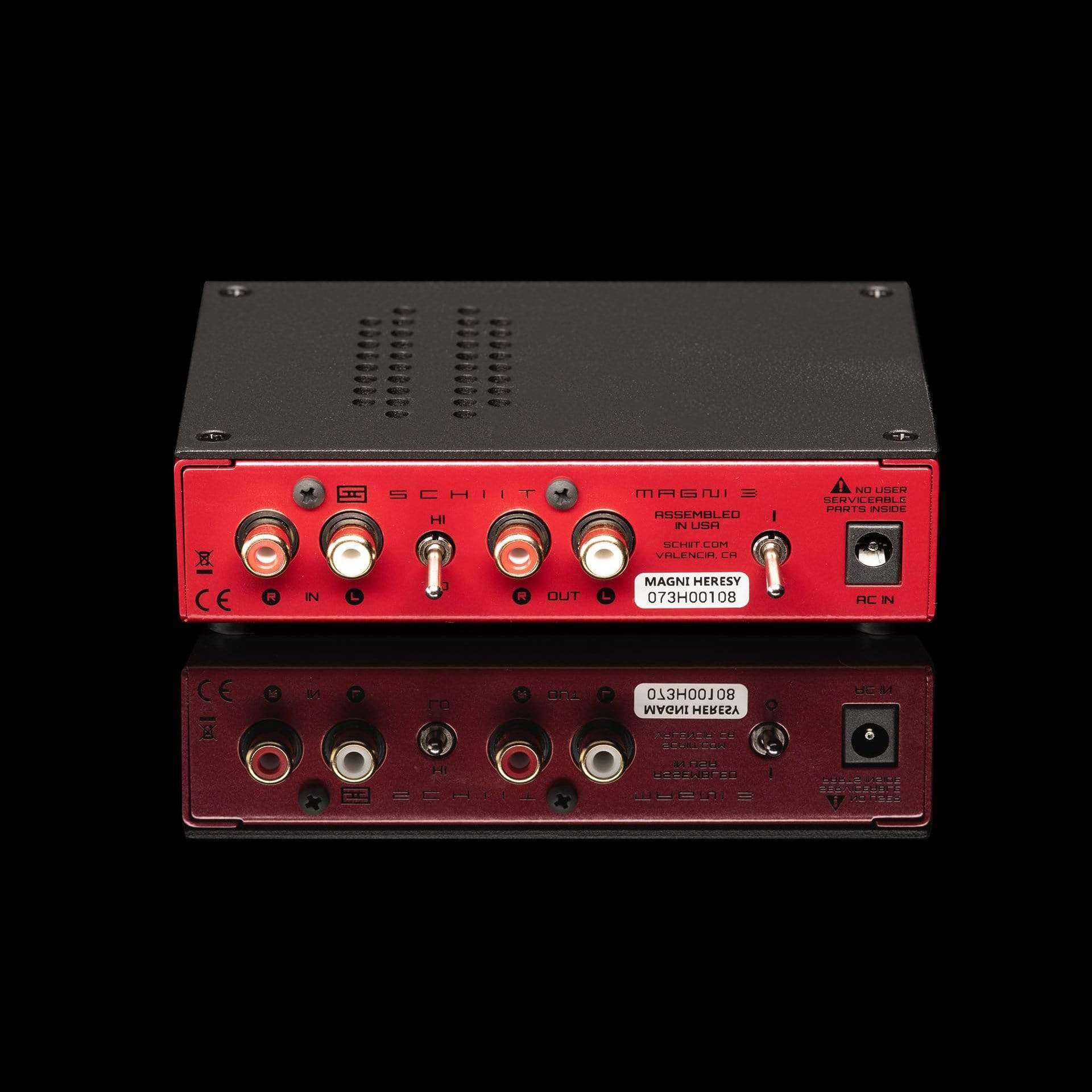

- Magni Heresy is a 100% op-amp-based headphone amp
- Utilizes super high quality parts, including a multiple paralleled output stage with feedforward
- Includes preamp outputs
- With its built-in time-delayed start-up and instant shut-down
- Designed and Built in California
General Specifications |
|
Frequency Response |
20Hz-20Khz, +/-0.04dB |
Maximum Power 16 ohms | 2.8W RMS per channel |
Maximum Power 32 ohms | 2.4W RMS per channel |
Maximum Power 50 ohms | 1.6W RMS per channel |
Maximum Power 300 ohms | 410mW RMS per channel |
Maximum Power 600 ohms | 215mW RMS per channel |
Crosstalk | Less than -70dB, 20 Hz-20 kHz in either gain |
Output Impedance | Less than 0.25 ohms at either gain |
Input Impedance | 25k ohms |
Gain | 1 (0db) or 5.5 (15db), selectable via rear switch |
Topology | OPA1662 op-amp for voltage gain with local feedback, OPA1688 (8 stages) as output buffers with local loops, no overall loop feedback. |
Protection | Standard failsafe DC power input and muting relay |
Power Supply | “Wall wart” style 24VA 15VAC transformer, regulated +/- 16V rails with over 6,000uF filter capacitance |
Power Consumption | 6W |
Weight | 1 lb |
Size | 5 x 3.5 x 1.25” |
THD+N |
|
High Gain | Less than 0.0014% (-97dB) at 1V RMS into 32 ohms |
Low Gain | Less than 0.0002% (-113dB) at 1V RMS into 32 ohms |
IMD |
|
High Gain | Less than 0.002% (-95dB) at 1V RMS into 32 ohms, CCIF |
Low Gain | Less than 0.0006% (-105dB) at 1V RMS into 32 ohms, CCIF |
SNR |
|
High Gain | Greater than 104dB, A weighted, referenced to 1V RMS |
Low Gain | Greater than 115dB, A weighted, referenced to 1V RMS |
