Goldmund MIMESIS STATEMENT Preamplifier

Name: Goldmund MIMESIS STATEMENT Preamplifier
Brand: Goldmund
SKU: GM.MIMESISSTA
Price: 509999.0 NZD
Availability: InStock

GoldmundSKU: GM.MIMESISSTA

Price:

$509,999

*Check with our team or your local store for availability.

We guarantee that all of our stock is 100% genuine, with full local warranty.

Share this product

Analog Preamplifier
ENGINEERING MUSICAL TRANSPARENCY

THREE VOLUMES. ONE SIGNATURE.

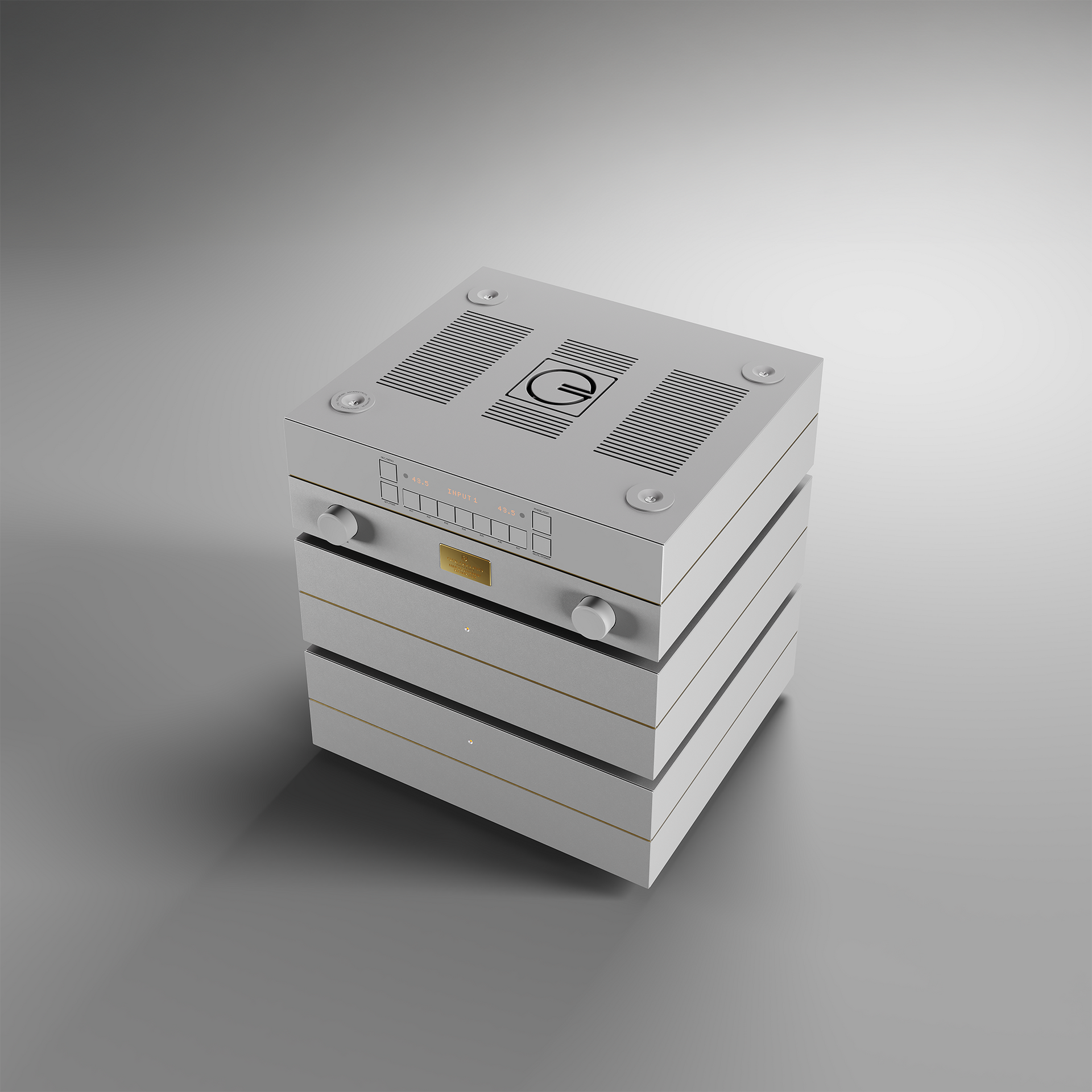

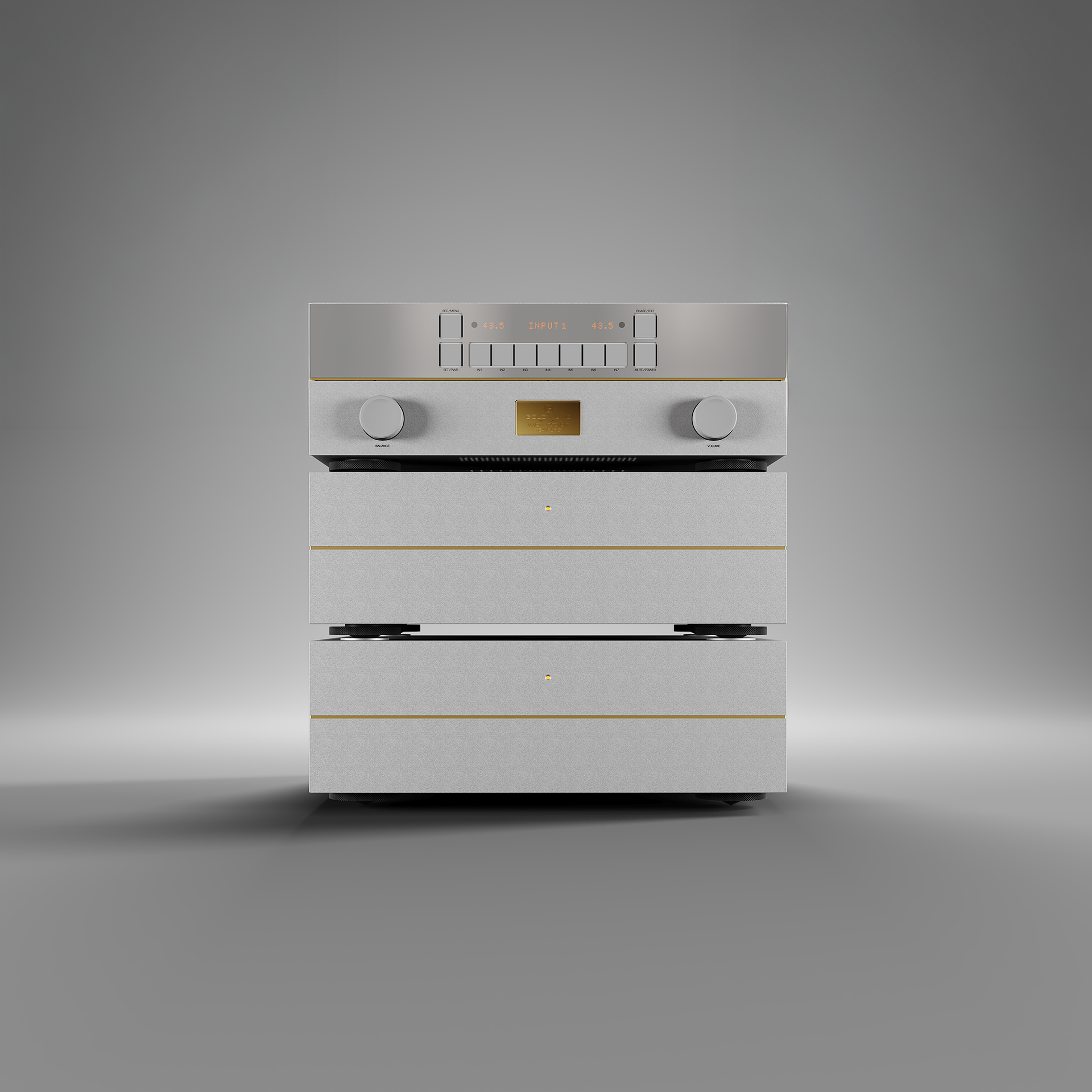

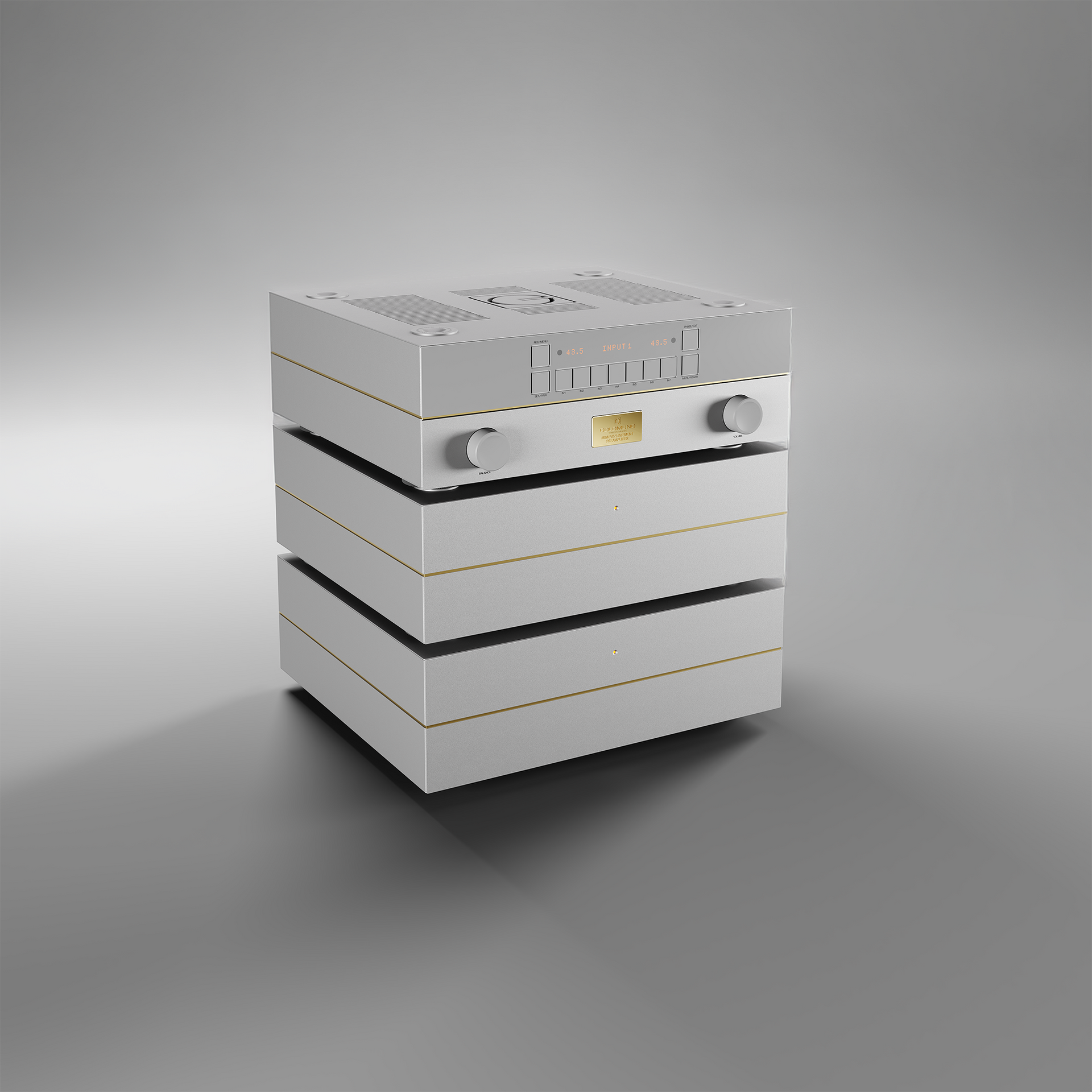

The Mimesis Statement introduces a new design expression, shaped by its three-chassis architecture. The physical separation of its functions becomes a distinct visual composition: three individual volumes forming one precisely balanced system.

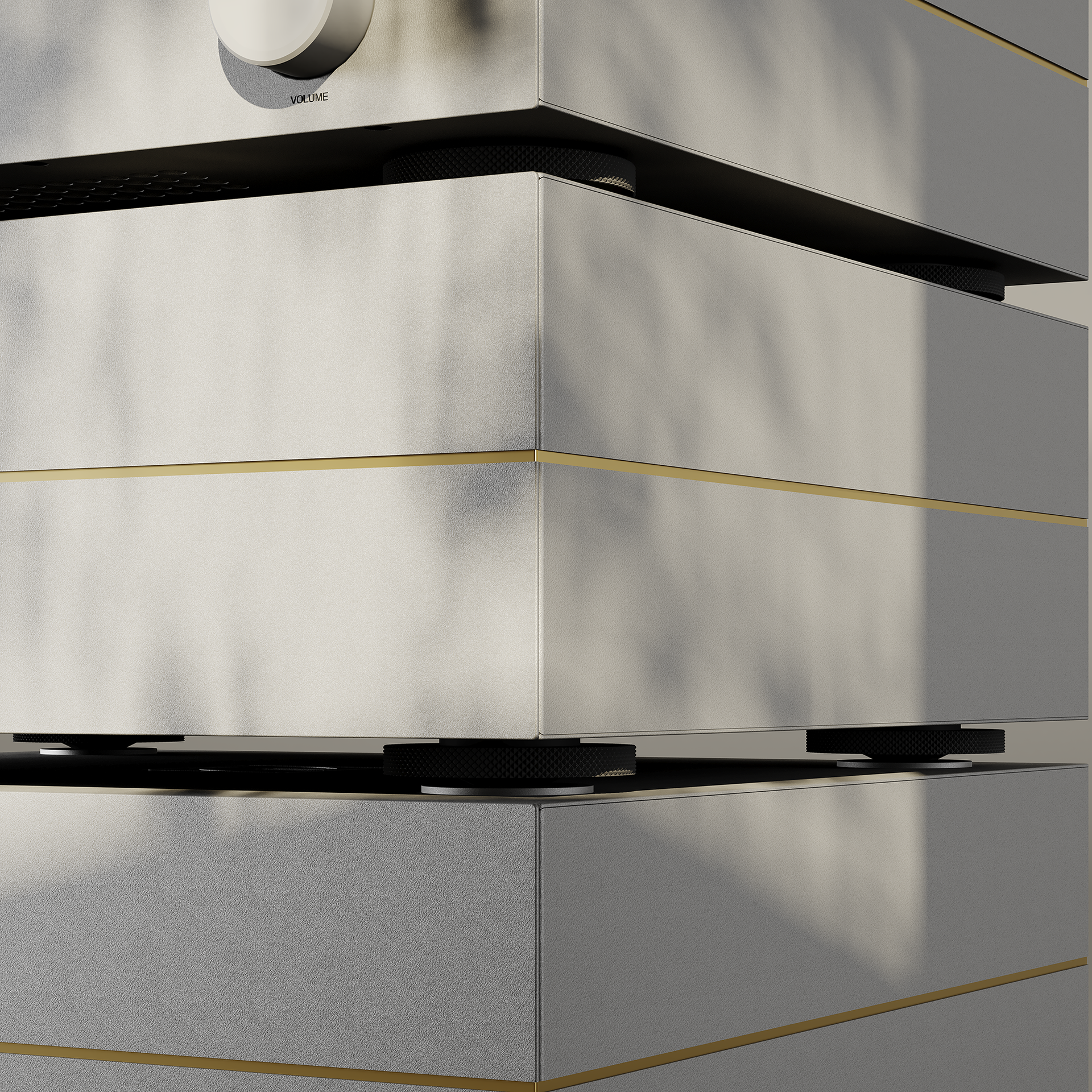

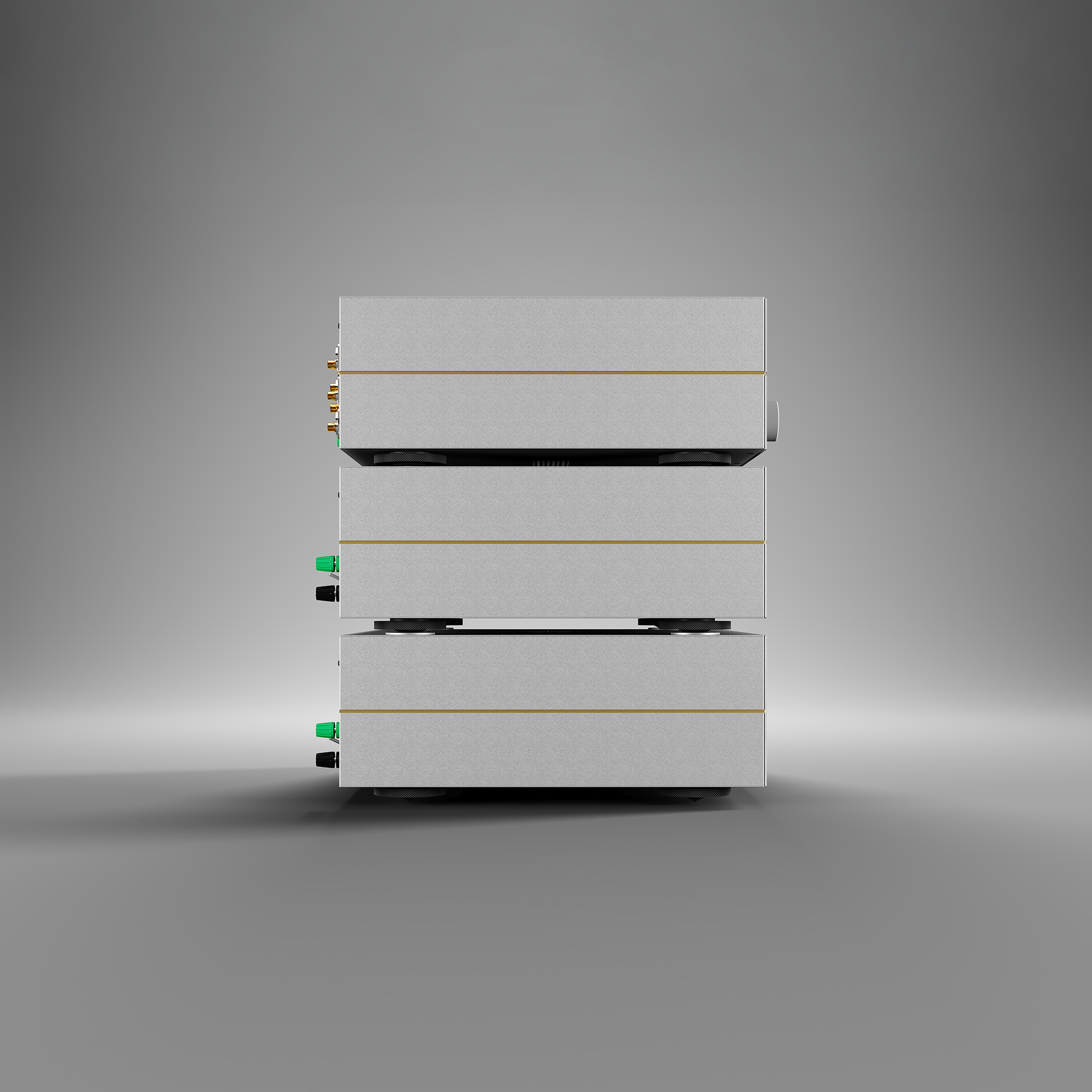

A fine recessed gold line extends across the three chassis, creating a subtle visual connection between them. It brings unity to an architecture deliberately separated by function, while giving the Mimesis Statement its distinctive visual signature.

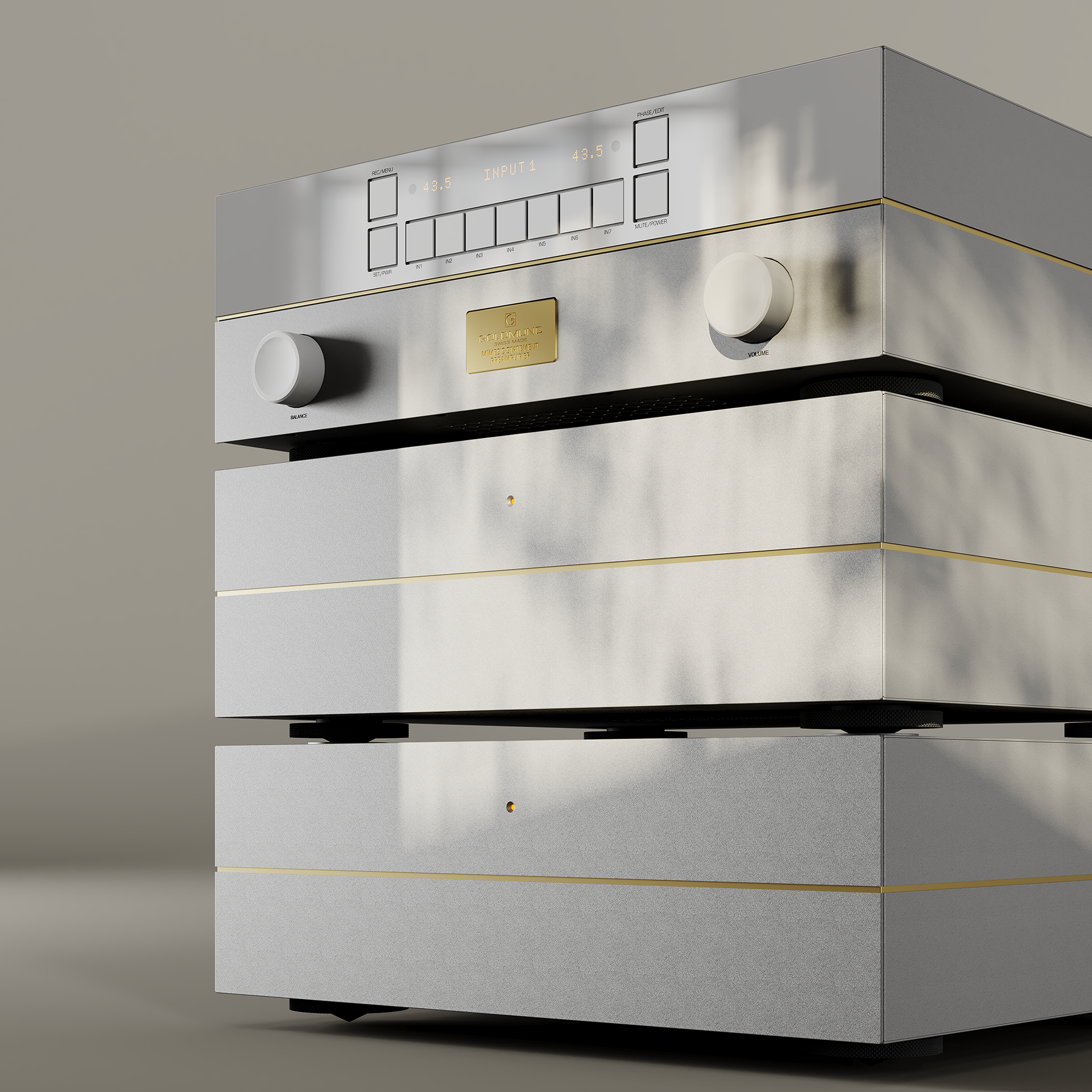

A new glass cover display and metal-coated controls complete this expression, integrated with the same sense of precision and restraint

THE EVOLUTION OF MIMESIS
Since 1987, Mimesis has pursued a single principle: preserving the integrity of the musical signal with minimal alteration.

The Mimesis Statement opens a new chapter in this pursuit, introducing an entirely rethought architecture and a new generation of electronics.

With a frequency response extending to 1.5 MHz, it represents Goldmund’s most advanced analog preamplifier to date.

ONE ARCHITECTURE. THREE CHASSIS. ONE MUSICAL AMBITION.
The Mimesis Statement combines a preamplifier unit and two dedicated power supply units within one unified architecture.

By separating the audio electronics from the power supplies, it increases physical and electrical isolation, reducing interference and interaction between channels to preserve a more transparent signal path.

PREAMPLIFIER UNIT
A newly developed audio board integrates the audio circuitry and new volume-control management.

DUAL POWER SUPPLY UNITS
Two dedicated external units, one for each channel, provide stable, low-noise power while remaining physically separated from the audio circuitry.

FULLY SYMMETRICAL ARCHITECTURE
Equivalent left and right signal paths support channel independence and signal integrity.

ADVANCED CONTROL, MADE INTUITIVE.
The Mimesis Statement combines advanced preamplification with a clear, intuitive user experience.

Essential listening functions remain directly accessible, while the glass display presents the information needed for everyday operation. Additional settings adapt the system to individual sources and configurations.

The technology remains present when needed.
Then attention returns to the music.

Form Meets Function
The Mimesis Statement combines sculptural presence with functional precision. From its aluminum chassis and glass-covered display to its mechanical grounding and ventilation system, each element contributes to the product’s design, usability, or performance.

Aluminum Chassis and Recessed Gold Line: Design coherence and structural construction.

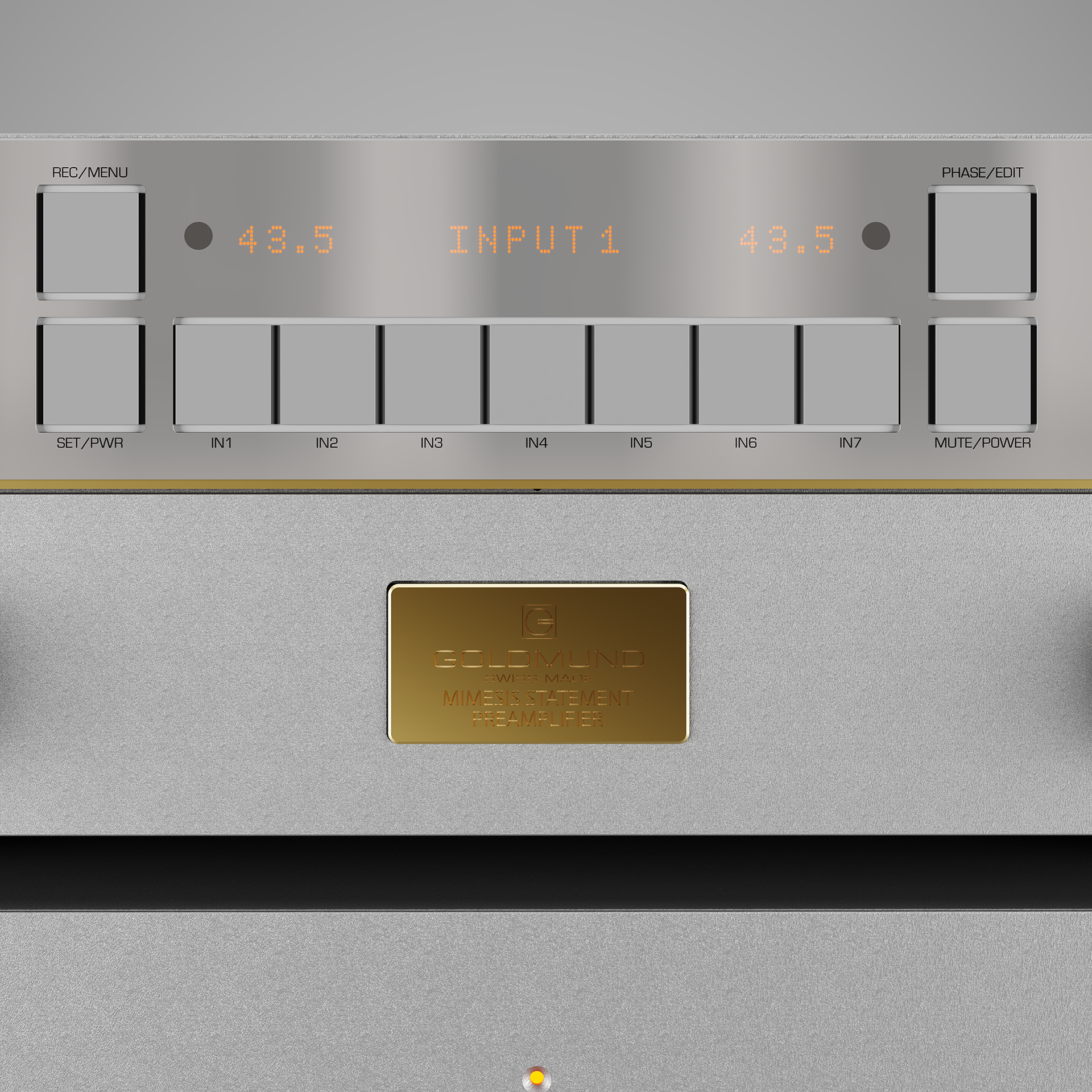

Glass Cover Display and Metal-Coated Controls: Visibility and intuitive interaction.

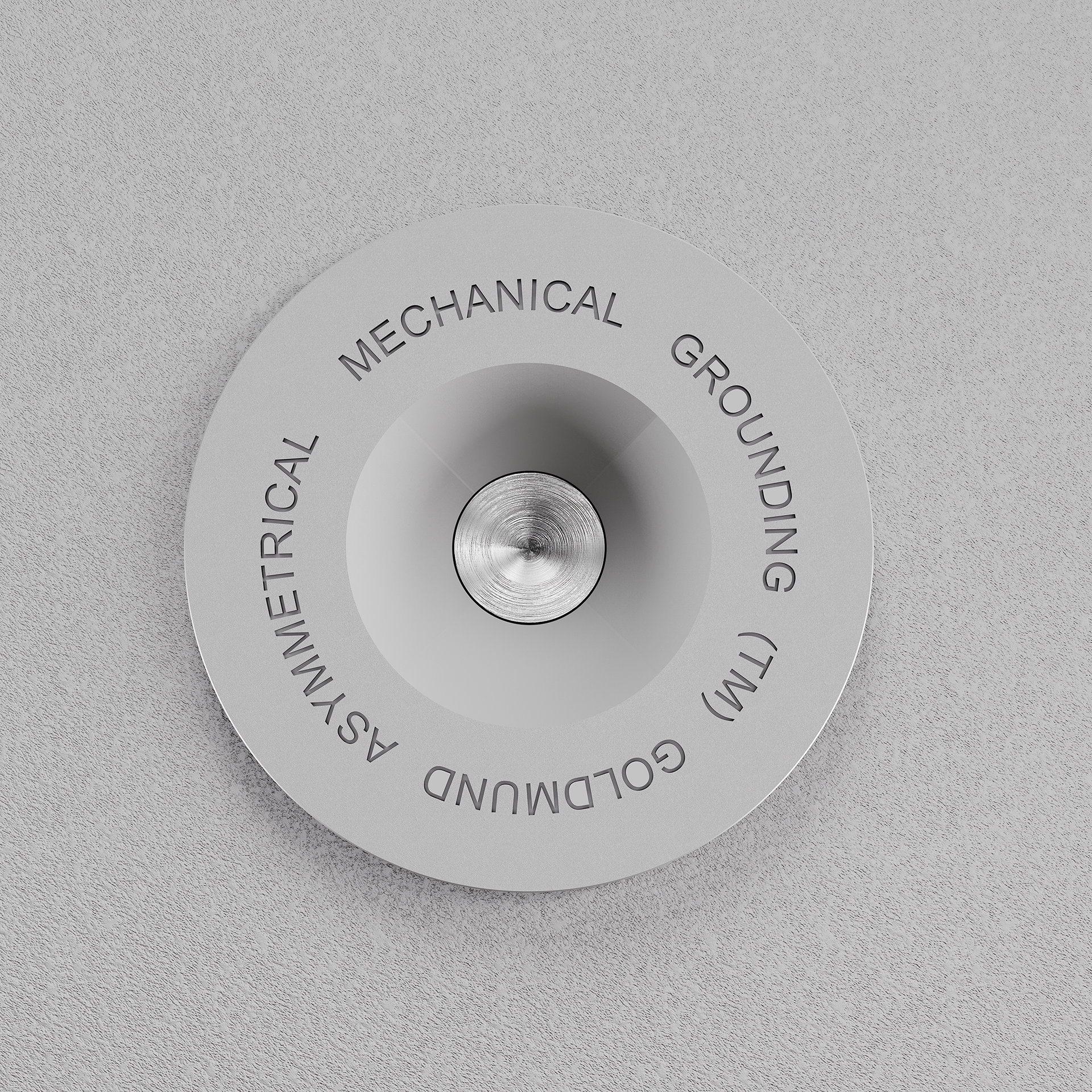

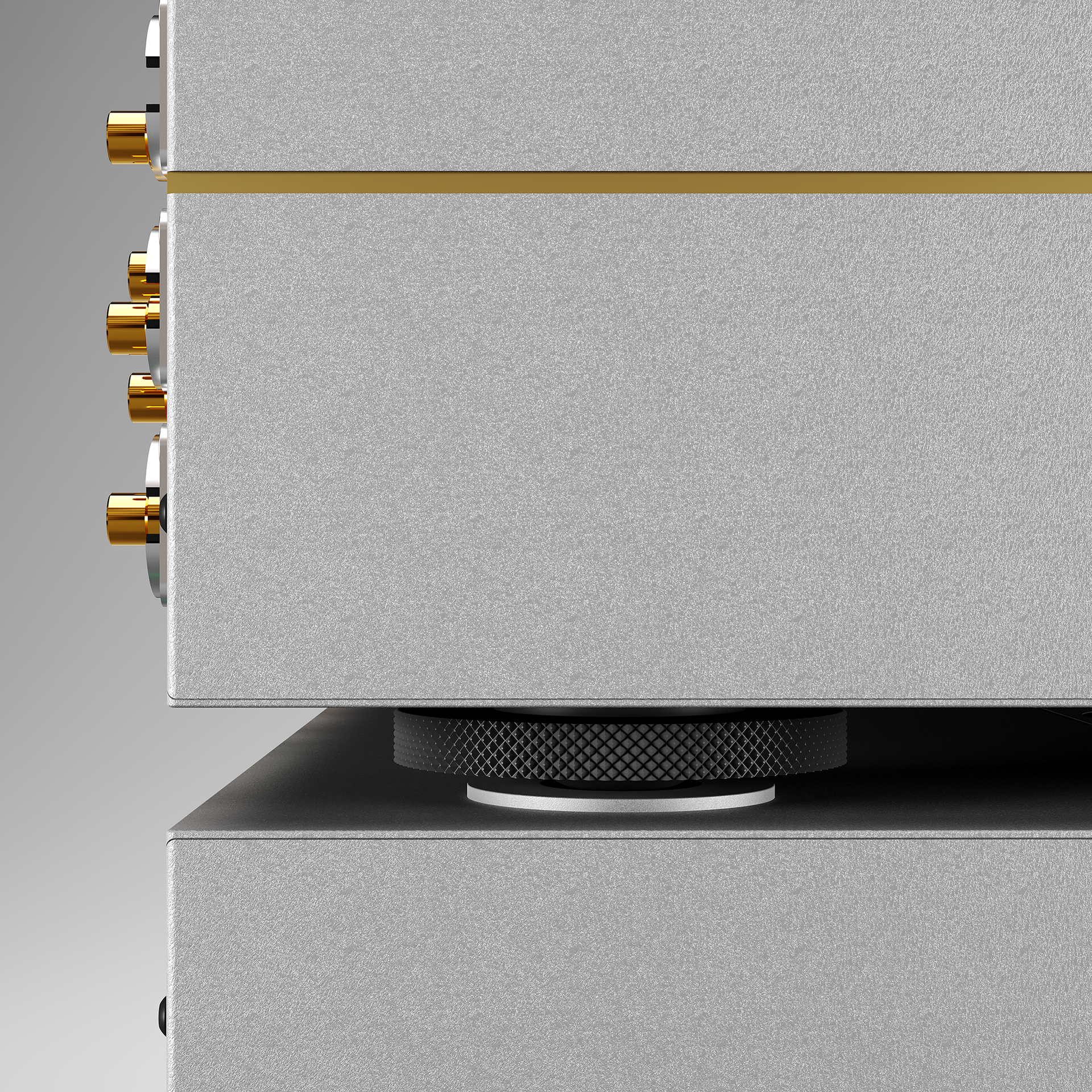

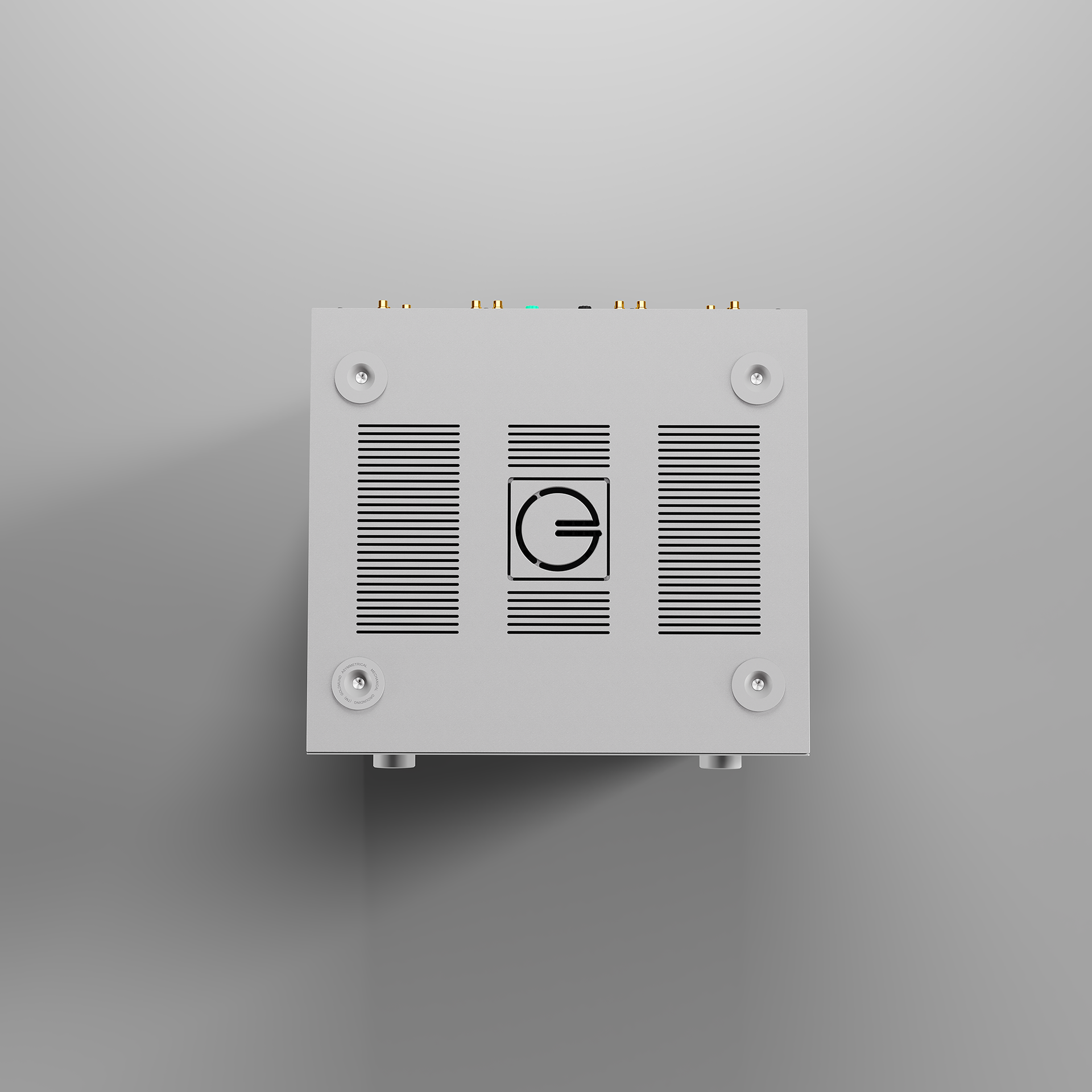

Mechanical Grounding: Controlled evacuation of mechanical vibrations.

Optimized Ventilation: Heat dissipation and thermal stability.

NEW-GENERATION POWER SUPPLY
The Mimesis Statement introduces a new generation of power supply electronics built upon Goldmund’s expertise in discrete regulation.

Multiple regulation stages operate in cascade, progressively refining, stabilizing, and isolating the power delivered to the sensitive preamplifier circuitry.

WHAT REMAINS IS THE MUSIC
The engineering evolves, while the intention remains.

Nothing added.
Nothing imposed.
Only revealed.

Three-Chassis Symmetrical Architecture: Features a three-chassis design that physically isolates the main preamplifier unit from two dedicated power supplies (one per channel) to eliminate electrical interference.Ultra-Wide Frequency Response: Delivers exceptional audio transparency across an ultra-wide frequency range extending from 0.2 Hz to 1.5 MHz ($\pm3\text{ dB}$).Cascaded Power Supply System: Employs multiple discrete regulation stages operating in cascade to supply pure, highly stabilized, low-noise power to sensitive preamplifier circuitry.Mechanical Grounding & Thermal Management: Utilizes a heavy aluminum chassis equipped with mechanical grounding technology to drain unwanted vibrations and optimized ventilation for thermal stability.Refined Aesthetics & Glass Display: Integrates a glass-covered front display, metal-coated controls, and a signature recessed gold line spanning all three chassis for a unified visual design.

Three-Chassis Symmetrical Architecture: Features a three-chassis design that physically isolates the main preamplifier unit from two dedicated power supplies (one per channel) to eliminate electrical interference.Ultra-Wide Frequency Response: Delivers exceptional audio transparency across an ultra-wide frequency range extending from 0.2 Hz to 1.5 MHz ($\pm3\text{ dB}$).Cascaded Power Supply System: Employs multiple discrete regulation stages operating in cascade to supply pure, highly stabilized, low-noise power to sensitive preamplifier circuitry.Mechanical Grounding & Thermal Management: Utilizes a heavy aluminum chassis equipped with mechanical grounding technology to drain unwanted vibrations and optimized ventilation for thermal stability.Refined Aesthetics & Glass Display: Integrates a glass-covered front display, metal-coated controls, and a signature recessed gold line spanning all three chassis for a unified visual design.

Goldmund MIMESIS STATEMENT Preamplifier Specifications
Audio Performance
Frequency Response	±3 dB, 0.2 Hz–1.5 MHz
Total Harmonic Distortion (THD+N%)	0.0002% (unbalanced input to unbalanced output)
Intermodulation Distortion (IMD)	IMD+N%: 0.0006% (unbalanced input to unbalanced output)
Signal-to-Noise Ratio	On line input >130 dB Weighted ASA A: >138 dB
Slew Rate	21 V/μs
Propagation Delay	200 ns
Inputs
Input Sensitivity	100 mV
Input Impedance	51 kΩ
Maximum Input Level / Balanced	9.6 Vrms
Maximum Input Level / Unbalanced	4.8 Vrms
Outputs
Nominal Output Level	1.55 Vrms
Maximum Output Level / Balanced	9.6 Vrms
Maximum Output Level / Unbalanced	4.8 Vrms
Output Impedance	50 Ω
Architecture & Power
Architecture	Three-chassis fully symmetrical architecture
Power Supply	New-generation power supply electronics with discrete regulation
Mains Voltage	Nominal line voltage: 115 V or 230 V (Input voltage range: ±10%)
Rated Power Consumption	75 W per power supply (150 W in total)
Fuse	5 A for 115 V ; 2.5 A for 230 V
Connectivity & Control

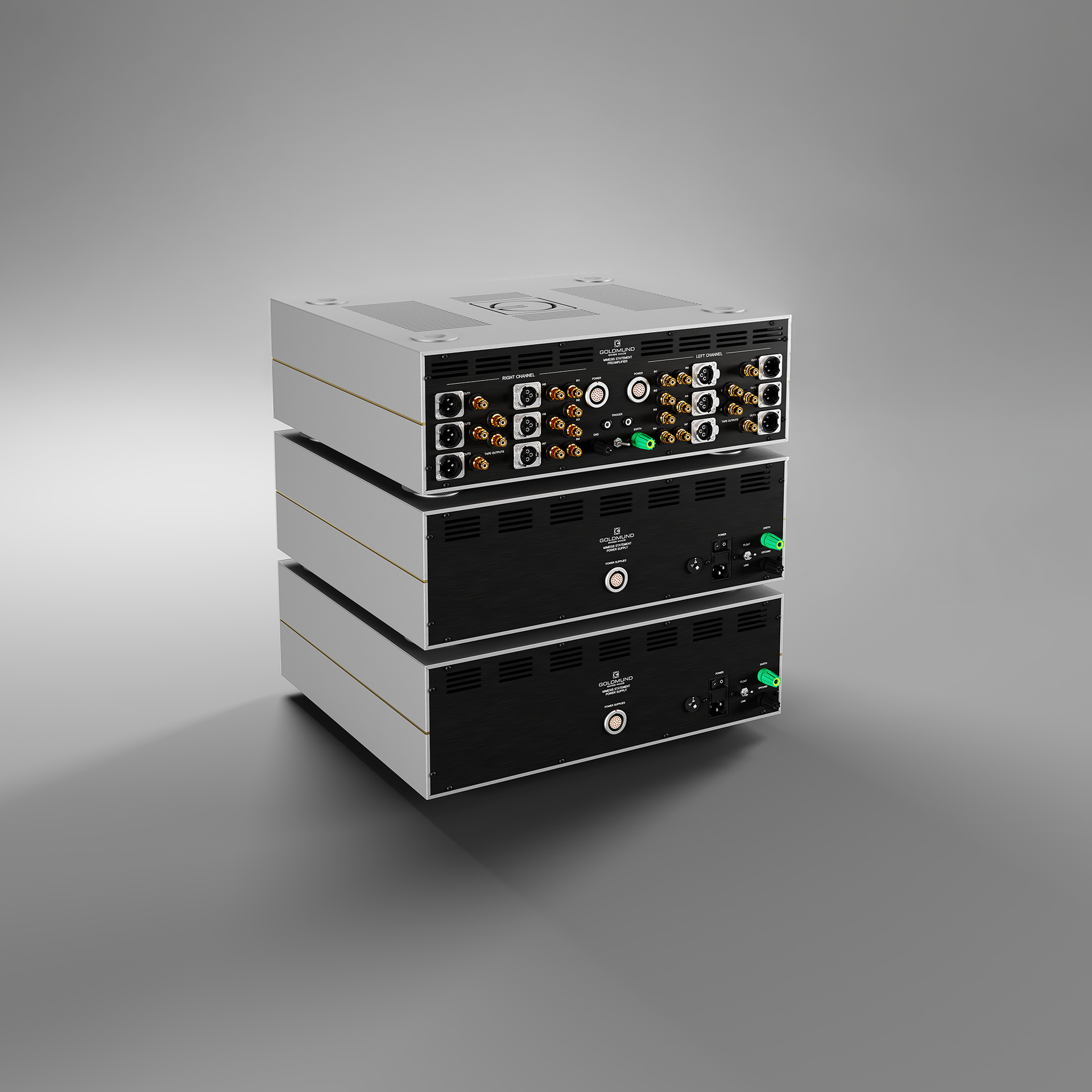

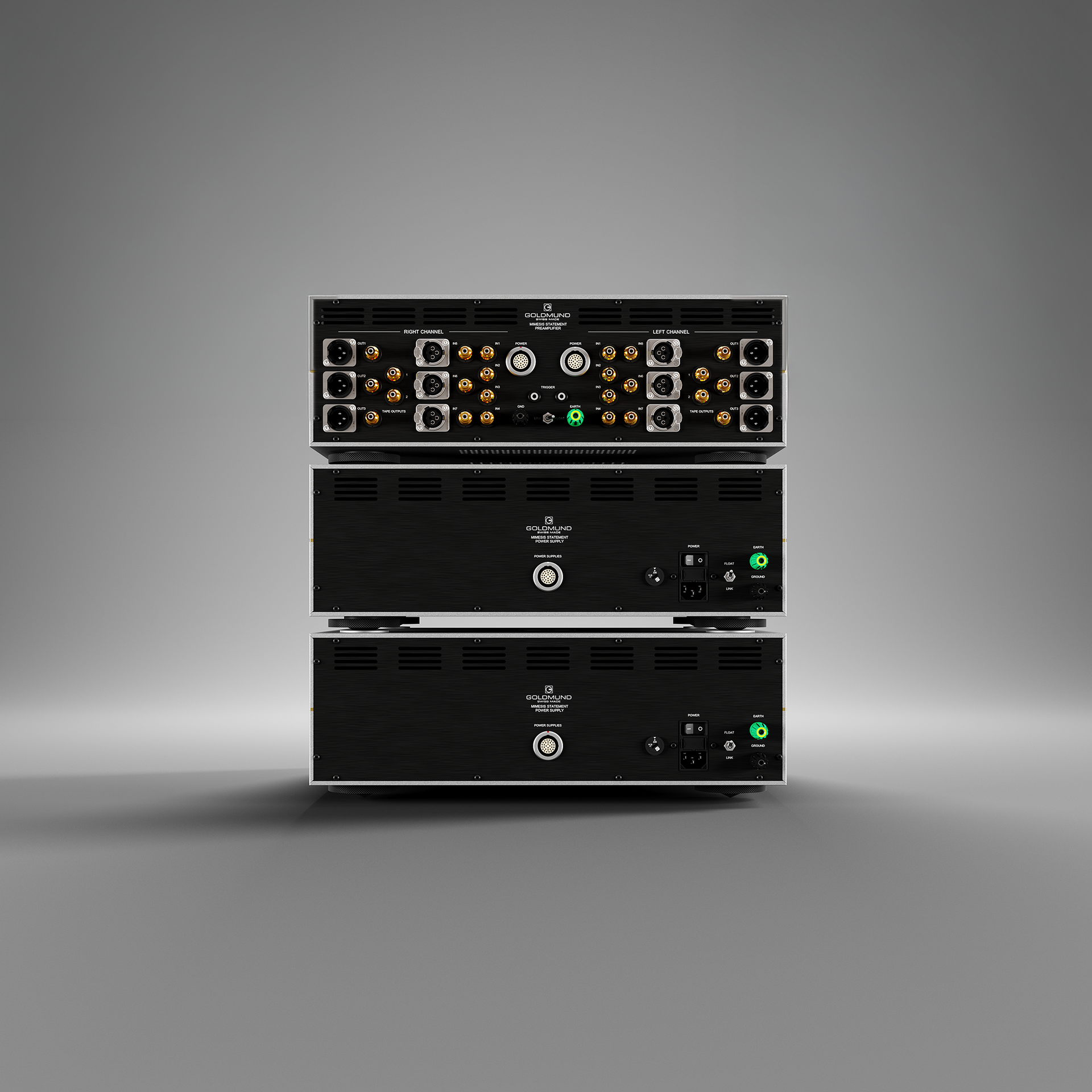

Analog Inputs	3 × XLR balanced (left & right) 7 × XLR unbalanced (left & right)
Analog Outputs	3 × XLR balanced (left & right) 3 × RCA unbalanced (left & right)
Trigger Outputs	2 × Jack Trigger 12 V output (external control)
Tape Connections	2 × RCA unbalanced (left & right)
Signal Ground / Link Float	1 × Black GND binding post* 1 × Green AC earth binding post* 1 × Link/Float bridge connection (switch)* *per chassis
Remote Control	IR remote controller with mechanical chassis
Dimensions & Weight
Overall Configuration	3 chassis
Chassis Dimensions (W × H × D)	Preamplifier: 440 × 161 × 430 mm Power Supply: 440 × 161 × 411 mm
Weight Per Chassis	Preamplifier: 22 kg Power Supply: 24 kg
Total Weight	70 kg
