Powerful Processor and Large Storage
RTD1619DR hexa-core 64-bit A55 processor and 64 bit bandwidth with larger processing capability have provided stable and efficient computing for the system. 4G DDR4 RAM and 32GB eMMC storage have greatly meet the demand to install massive applications.
512G Internal SSD
NEO α(Alpha) is equipped with a 512G enterprise SSD for local music playback. High-quality digital music files can be easily stored, data reading is stable and fast. Heating and noise problem of traditional mechanical hard disk can be avoided.
ESS9038Pro DAC
ESS9038 Pro DAC chip is the core component of NEO α(Alpha) audio decoding. -122db THD+N and 140db dynamic range are benchmark indicators among the industry. Support up to DSD512 and PCM768@32bit, both performance and sound quality can meet the demand of audiophiles.
XMOS Audio Processor
Octa-core XMOS X216 audio processor can provide excellent digital audio processing with high-definition decoding, low latency, low jitter, and high flexibility. It also supports asynchronous transmission, PCM 768KHz, DSD 512 and 8x MQA decoding.
Multichannel DSD Processing Technology
- Equipped with a tailored multichannel DSD processing chip and clock reconstruction technology
- Just for playing multichannel master recording music
- Both multichannel DTS and DSD are supported
- It is the first time to achieve DSD Native 5.1 lossless audio output from HDMI DSD port among the industry
Dual Power Supplies
- With separate digital and analog power supplies to eliminate interference and improve the sound purity
- Linear power supply designed for analog audio circuits which is composed of multi-winding large toroidal transformers
- While switching power supply is for digital circuits with lower ripple and magnetic leakage interference
- With the patented technology of smart input voltage switching for linear power supply
- it is compatible with voltages worldwide without flipping the switch

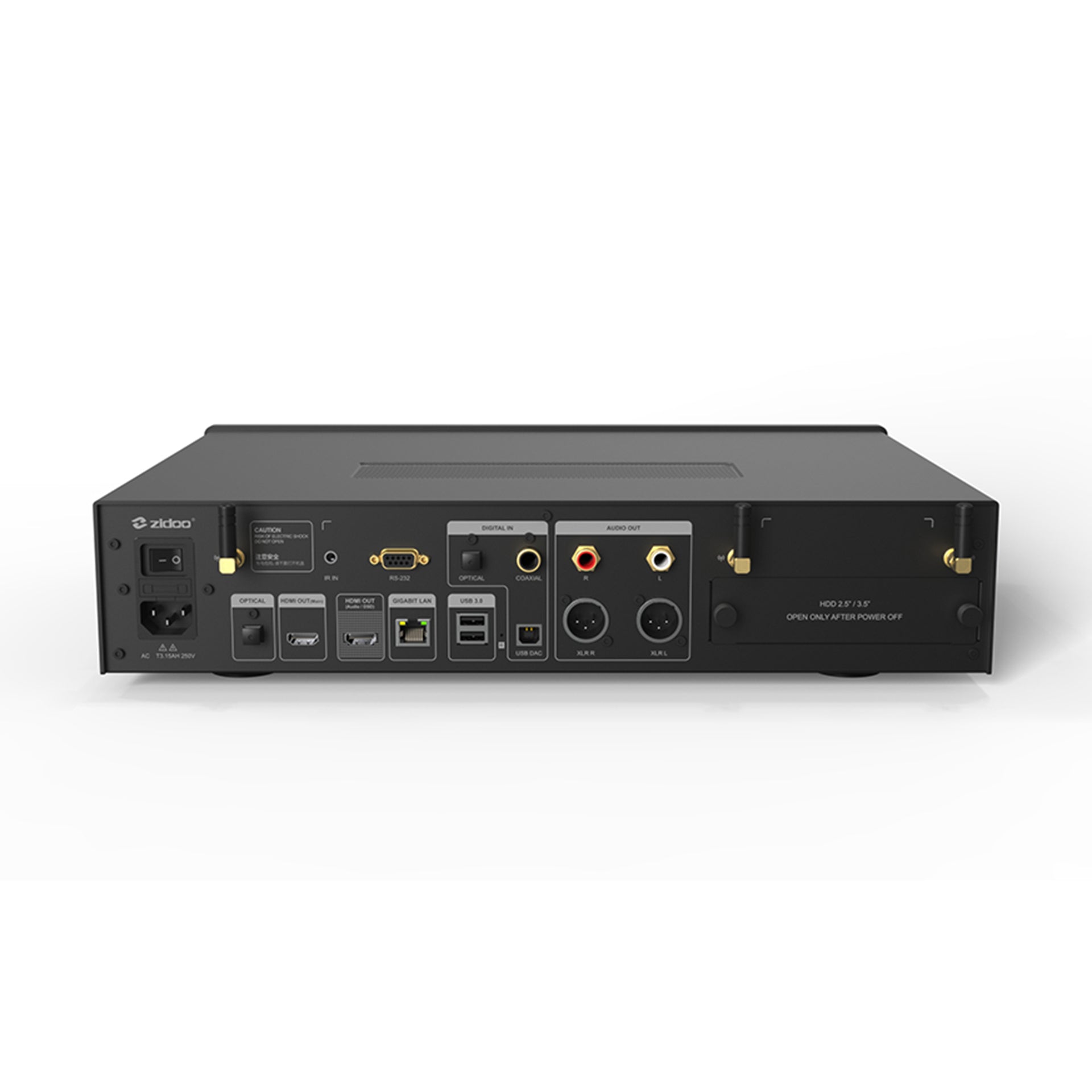

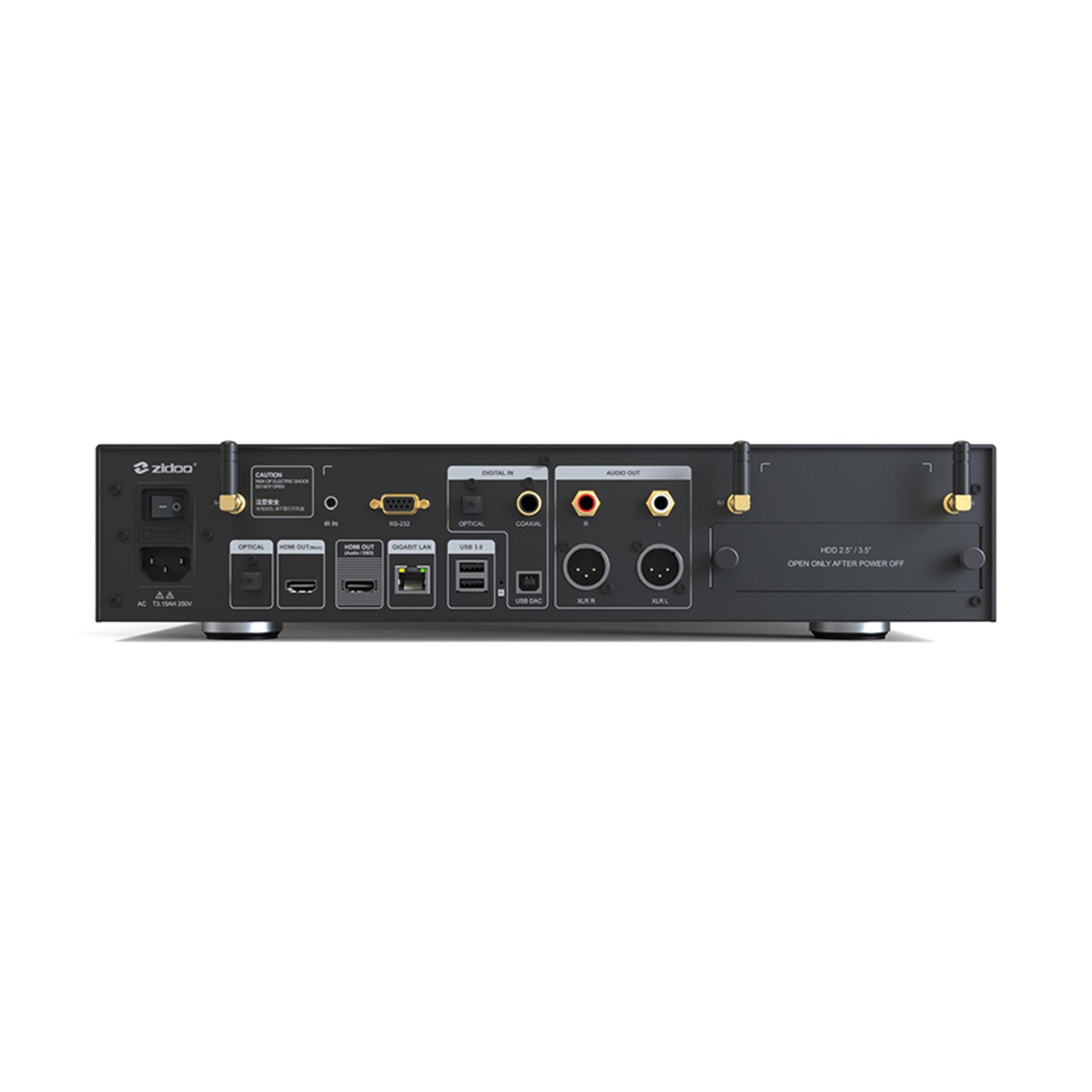

Double HDMI for Audio and Video Separation
There are 2 HDMI ports for NEO α(Alpha)
- HDMI 2.0a main output can output audio and video signals to 4K TV, projectors and A/V receiver
- The other HDMI port(Audio/DSD) is designed to output audio signal only
It is not only compatible with HDMI 1.4 A/V receiver but also can output DSD Native 5.1. With independent high-precision clocks and thus better audio and video performance.
Dual High-precision Clocks
There are 2 ultra-low noise femtosecond high-precision clocks for audio decoding circuit (45.1584MHz and 49.152MHz), which correspond to 44.1KHz and 48KHz multiplied sampling. Jitter has been effectively suppressed. It ensures high-precision digital/analog conversion, provides ultra-high integrity and resolution for analog audio output and reproduces the real sound details from music studio.
Multiple Digital Inputs
Multiple ports like USB DAC, Optical and Coaxial can be connected with various devices (computer, mobile phone, streamer, set-top box, CD player) to convert digital signal to analog signal by ESS9038pro DAC. No matter which way you use to play music, you will enjoy excellent sound quality.
Headphone Amp Output
6.35 headphone jack brings great convenience for headphone enthusiasts. The amp circuit adopts low ripple power supply, multi-level signal buffering, voltage and current staged amplifying processing, so that it has low noise, high current and large thrust. Two gain modes adjustment is to adapt different headphone in 16~300 ohm impedance range.
Balanced Circuit and Professional Preamp
As an all-in-one preamp, the volume can be adjusted easily by volume knob, and it can connect with power amp and active monitor speakers. Both XLR and RCA signals are processed by balanced circuit with good noise immunity. Multi-stage operational amplifier buffering and amplification, unique low-distortion filter design and independent signal loop have greatly improve channel separation, maximize the dynamic range and sound integrity.
Featured Audio Components
In order to obtain audio indicators and good sound quality, both circuit design and materials are rigorous, such as immersion gold PCB and anti-interference wiring. Audio components like 6pcs of operational amplifier, OMRON relay, WIMA and ELNA resistors are carefully chosen.
Lossless Bluetooth Audio
NEO α(Alpha) has a internal lossless Bluetooth receiver with Qualcomm flagship QCC5125 module. Supporting aptX/aptX LL/aptX HD/LDAC audio transmission to quick connect with mobile phone and tablet and enjoy CD quality music.
CD Ripping and Playback
NEO α(Alpha) can play CD discs (DTS CD and MQA) by connecting with CD-ROM. CD ripping is based on ZIDOO HASH algorithm, album name and track names can be ripped losslessly, detailed album and artists info can be generated automatically.
4K UHD Resolution Technology
NEO α(Alpha) video decoding is based on Linux and supports almost all video decoding including 4K Dolby Vision and HDR10+. The output up tot 3840 x 2160 60Hz, HDR (Dolby Vision, HDR10+, HDR10, HLG), 12bit and BT.2020 wide color range.
Video Decoding and Output Based on Linux Framework
Based on Linux video decoding and output framework, NEO α(Alpha) has less data loss and image quality with high reproduction. Clear voices and vivid images bring us excellent home theater experience.
Dolby Vision VS10 Engine
Dolby Vision VS10 engine can convert HDR to SDR and SDR to HDR. The image quality from NEO α(Alpha) VS10 engine is better than any display device(HDR, SDR) for any files (Dolby Vision, HDR and SDR).
10Bit/12Bit Color Depth
The powerful image processor supports 10/12Bit processing and output, which provides rich colors and natural color transition, color banding effect has been effectively avoided. BT.2020 wide color range brings bright image color and good image space.
Accurate Resolution and Frame Rate
Mainstream movies are shot at the frame rate 23.976 Hz. Generally it has been converted to 24Hz for media players on the market, ZIDOO media players can output accurate resolution and frame rate (23.976 Hz and 59.94 Hz).
Mobile Phone and iPad Control
NEO α(Alpha) Mobile phone and iPad control APP will display Poster Wall, Music Player and system setting. Program search and system setting can be done in the background without affecting movie playback.
