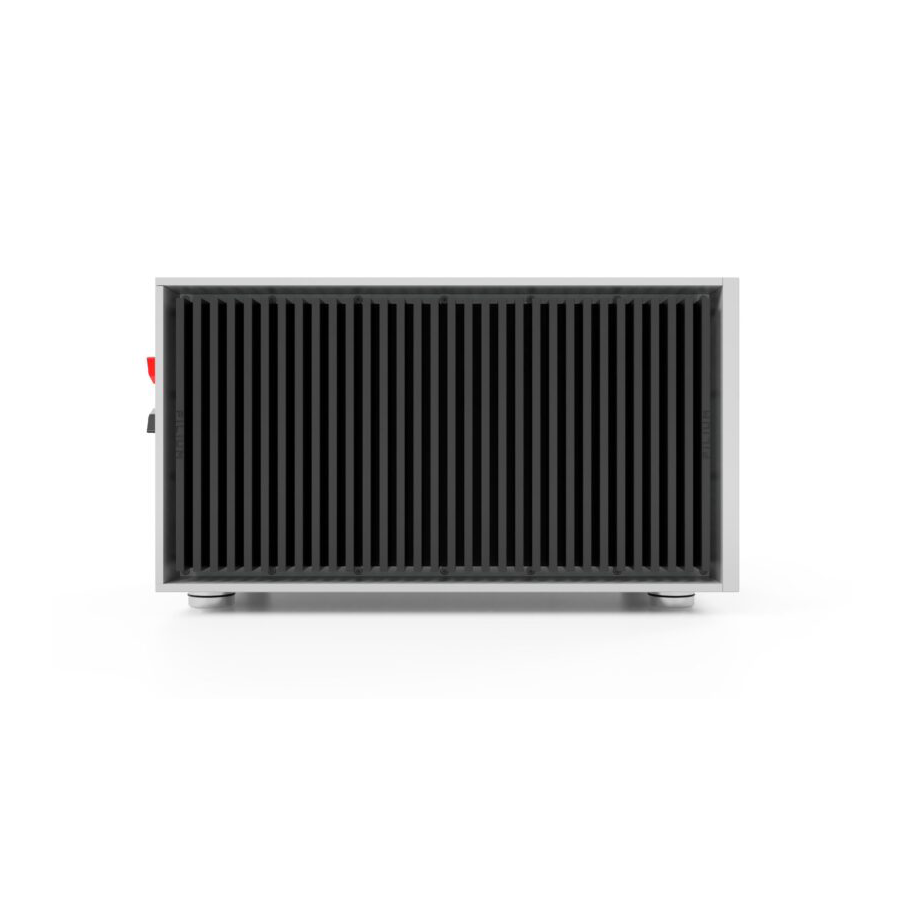

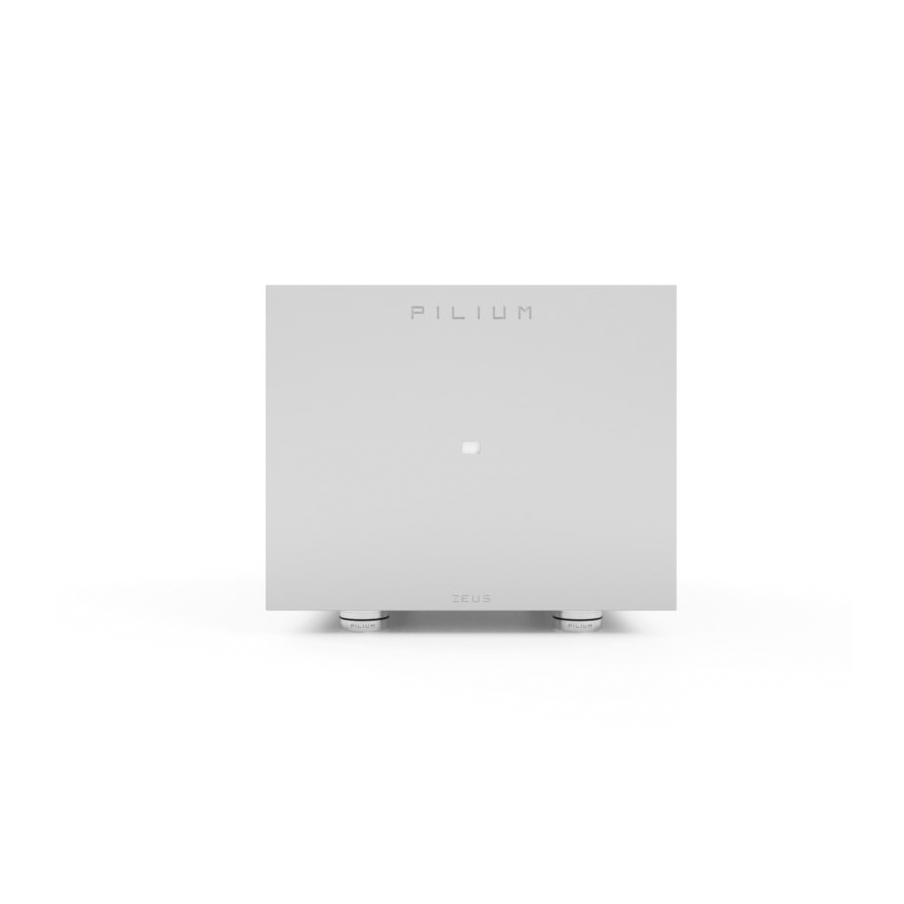

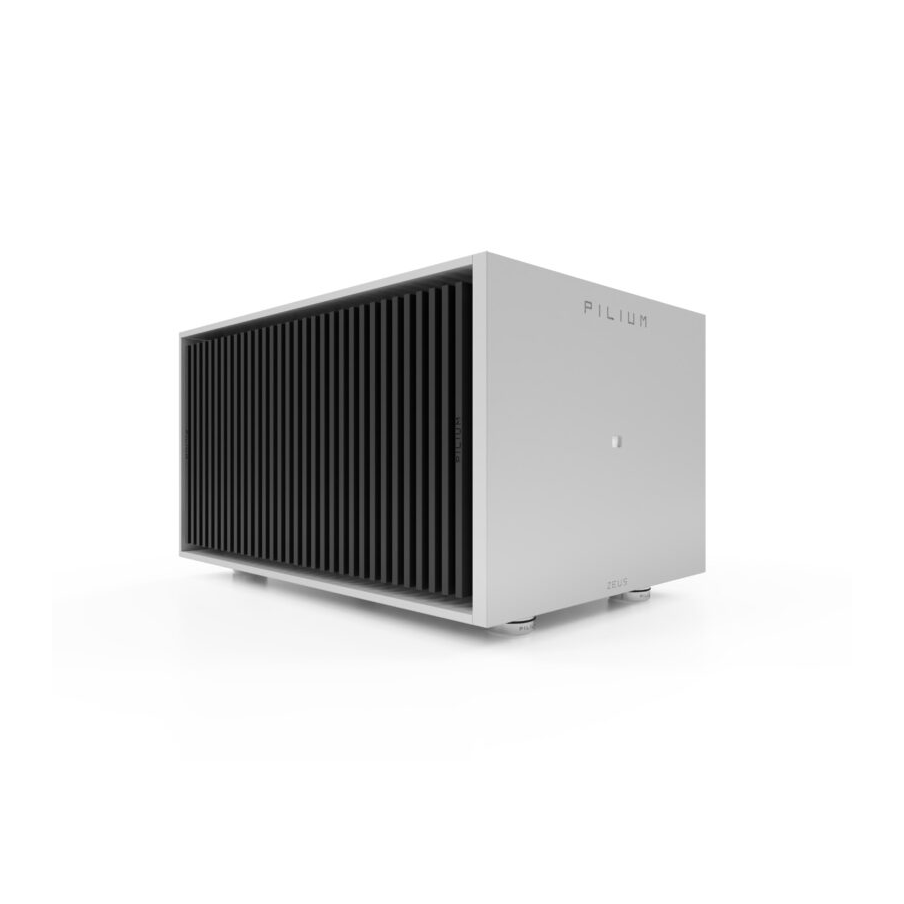

Pilium Zeus Stereo Amplifier

• 2 x 2.5KVA encapsulated ultra low noise transformers and isolated from the chassis
• 640.000uF capacitance custom made super capacitors
• 2 x 32 Ultra wide bandwidth powerful transistors
• Military specs pcbs
• Separate IEC for each channel with it’s own dedicated switch
• Microprocessor digitally controlled DC, Temperature, speaker protection
• Completely separated audio signal circuitry from the one that does not process audio signal

Power:	2x400W @ 8Ω, 2x800W @ 4Ω, 2x1600W @ 2Ω (0.5 Ohm stable)
Frequency Response:	(-3dB) : 0.1 Hz – 125 kHz
Signal To Noise:	132.6 dB
THD+N:	0.00259% @ 1kHz, 50W
Voltage Gain:	+31 dB (35)
Output Impedance:	<0.1 Ω
Inputs:	1 Pair XLR 1 Ground Binding Post 2x IEC 16A Power
Outputs:	Speaker Terminals (1 Pair / channel)
Power Consumption:	Standby: 65W Maximum: 3200W
Dimensions:	412x480x705mm (HxWxD)
Net Weight:	174kg
