Price:
$19,999
*Check with our team or your local store for availability.
We guarantee that all of our stock is 100% genuine,
New Zealand sourced stock, with full local warranty.
Colour: Black

Description

  • Direct-Drive Output for True Ribbon Headphones – First of its kind to directly power ultra-low impedance ribbon headphones like RAAL Immanis and Magna without external interfaces.
  • Dual Output Modes – Switch between HP Mode for traditional headphones and TR Mode for current-driven ribbon models, ensuring optimal compatibility and performance.
  • Refined In-House Output Transformers – Hand-wound artisan transformers deliver lower noise, enhanced dimensionality, and enable true current-drive capability.
  • Class-A Push-Pull Circuit – Uses four 6C45 driver tubes and four 2A3 power tubes to deliver up to 10W per channel with high clarity and minimal distortion.

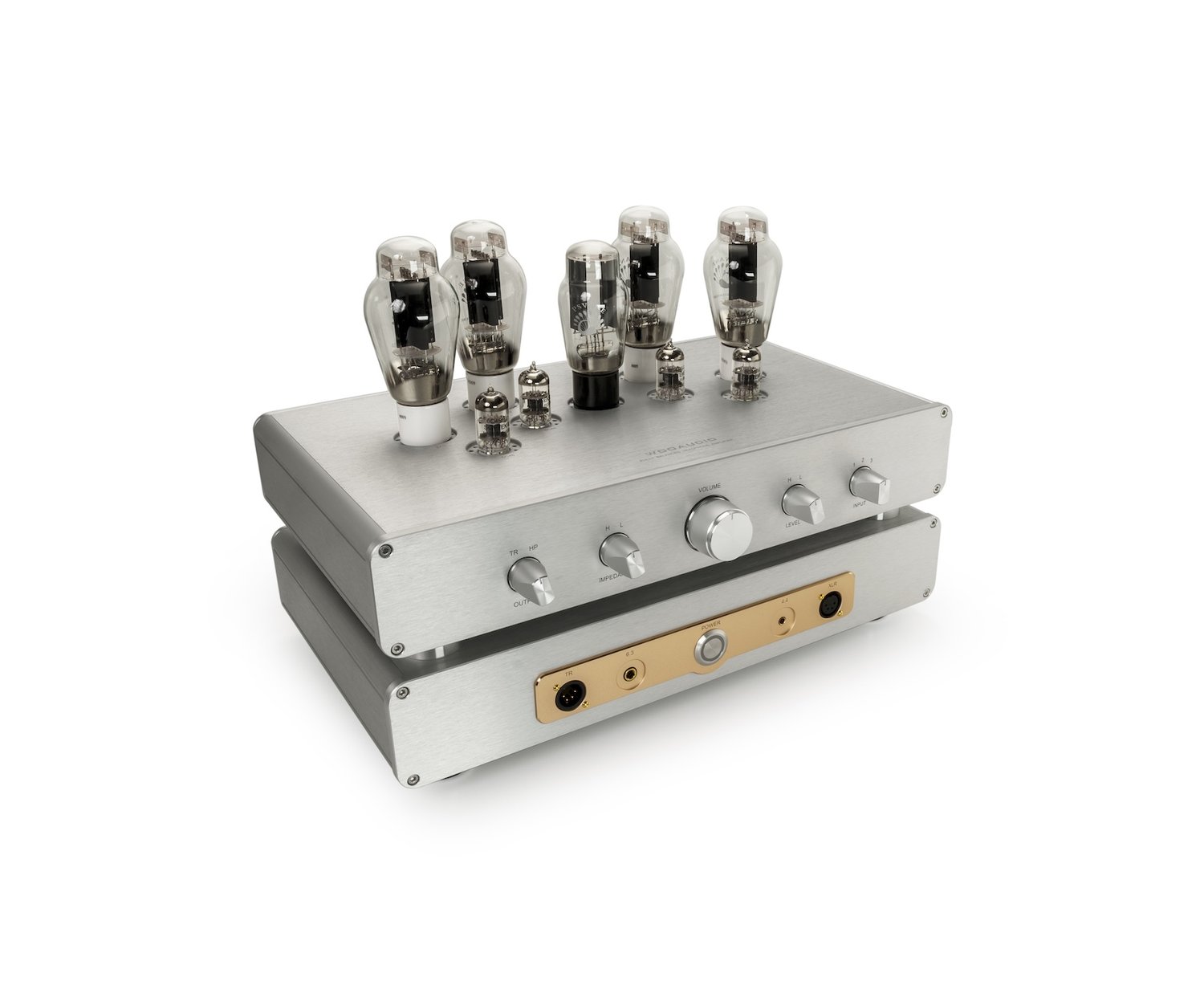

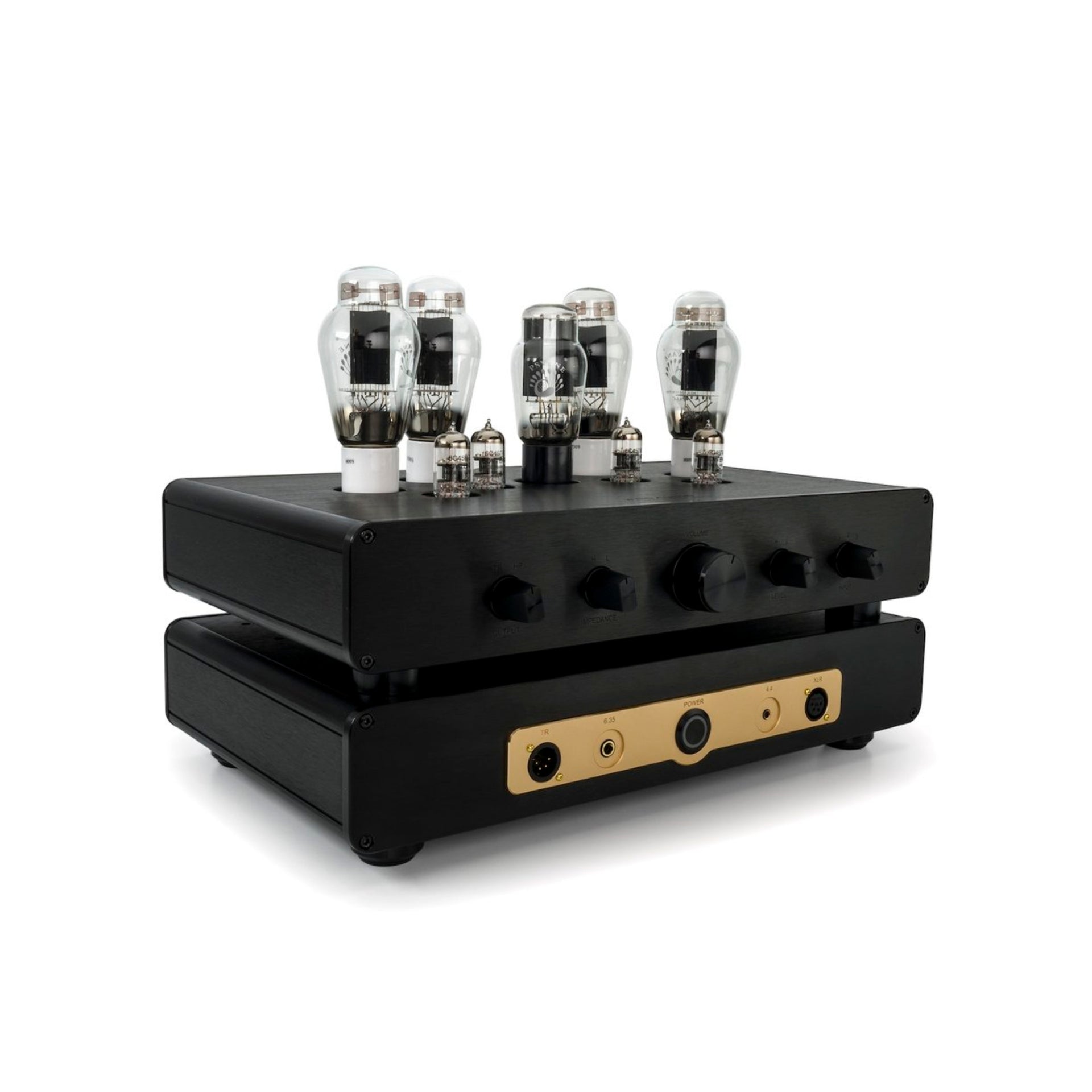

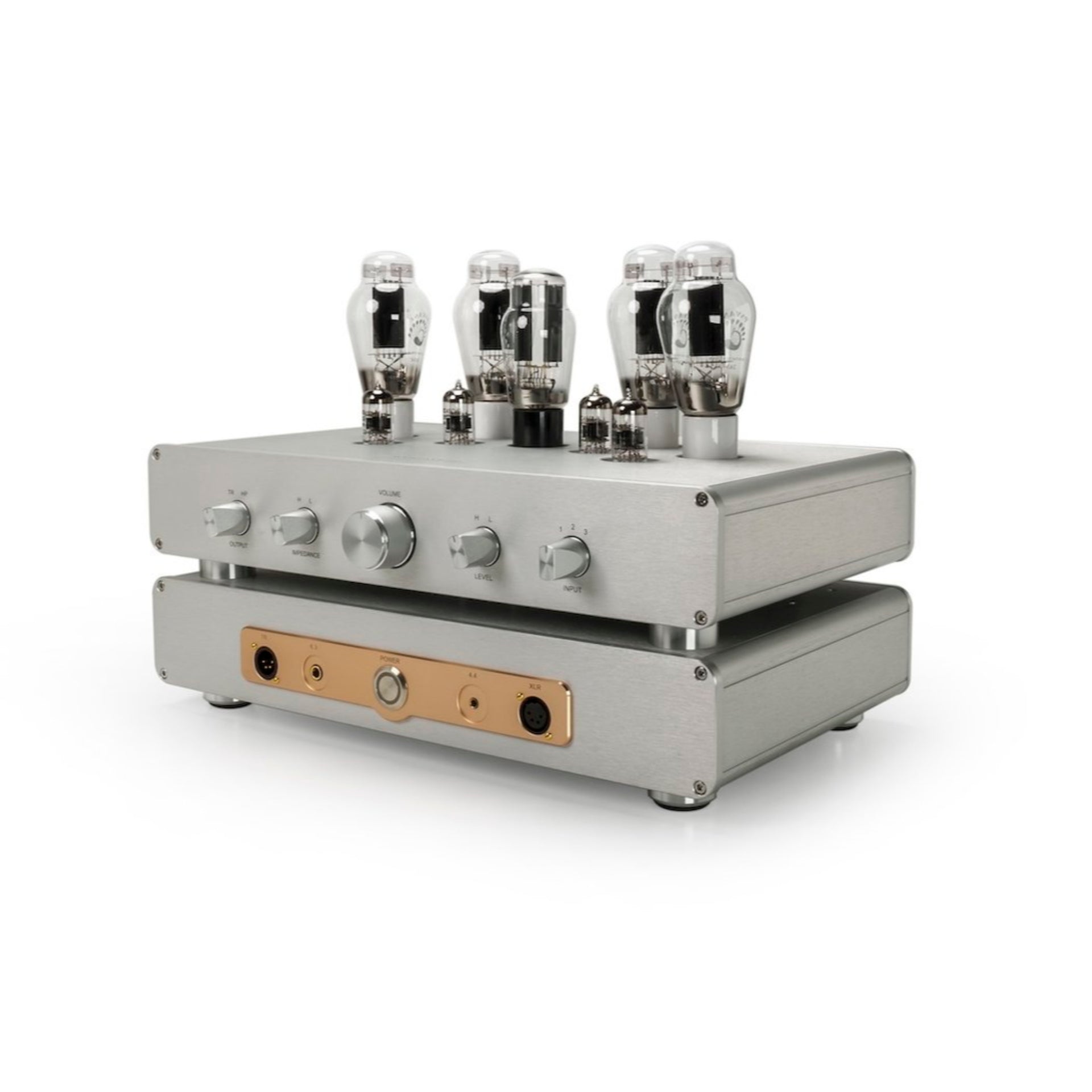

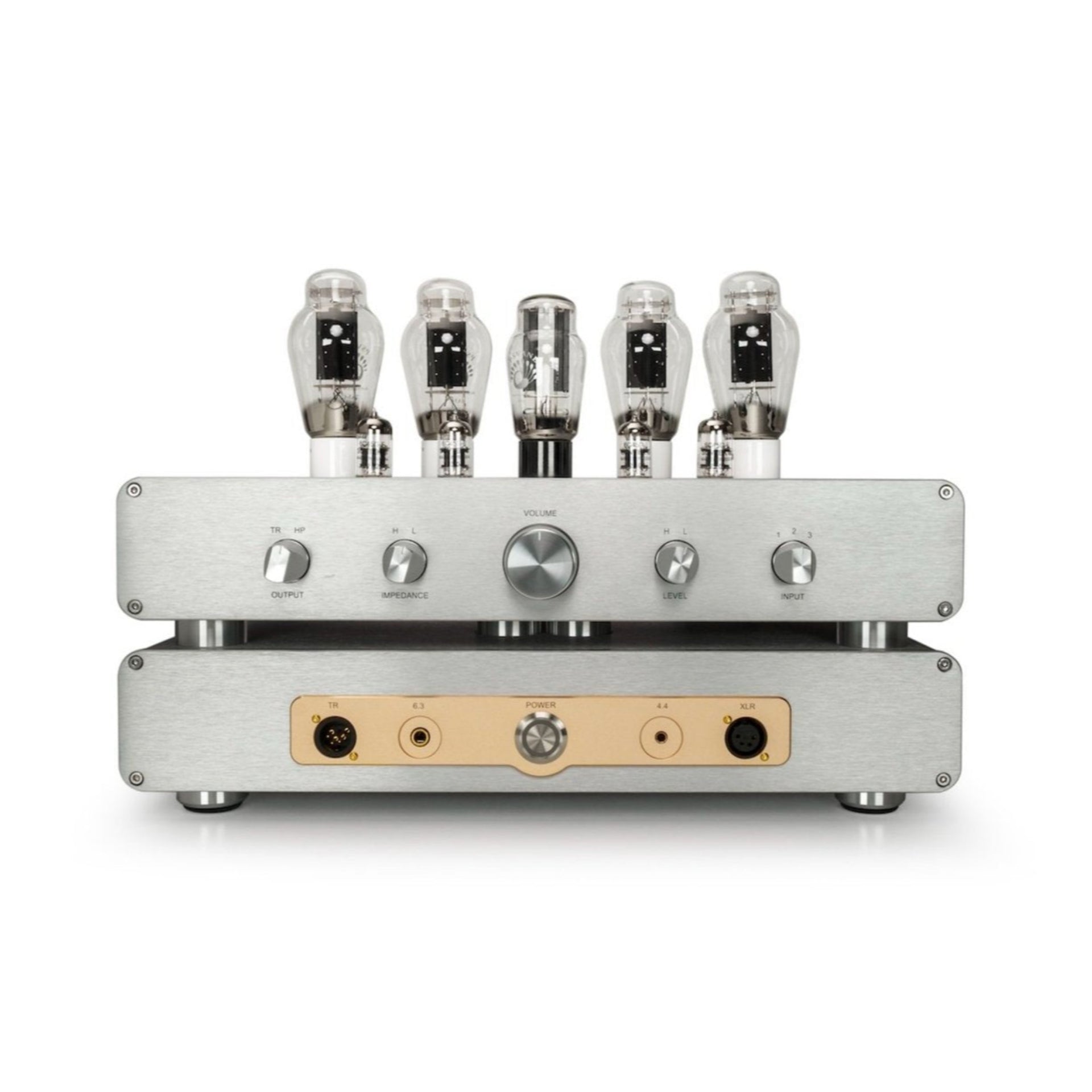

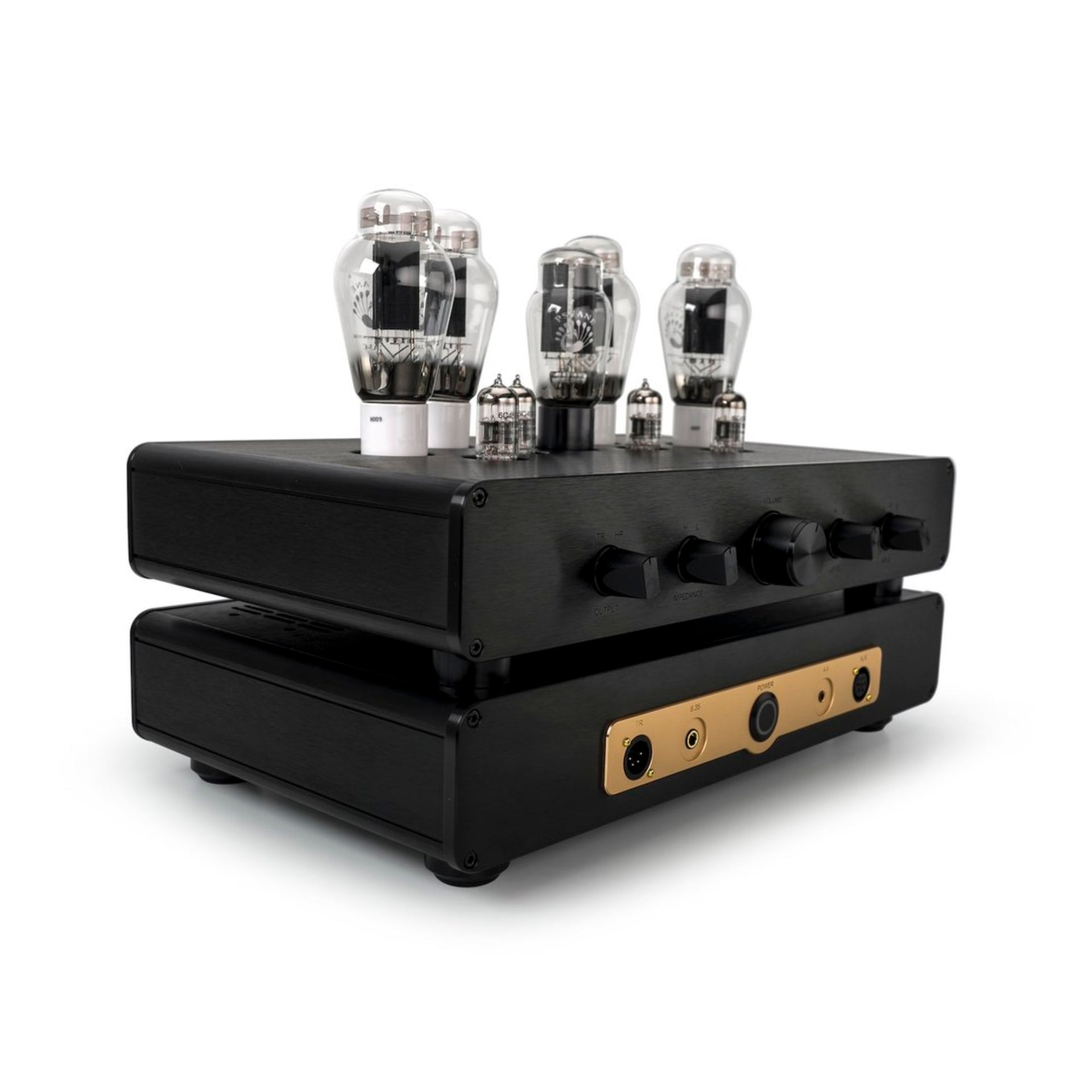

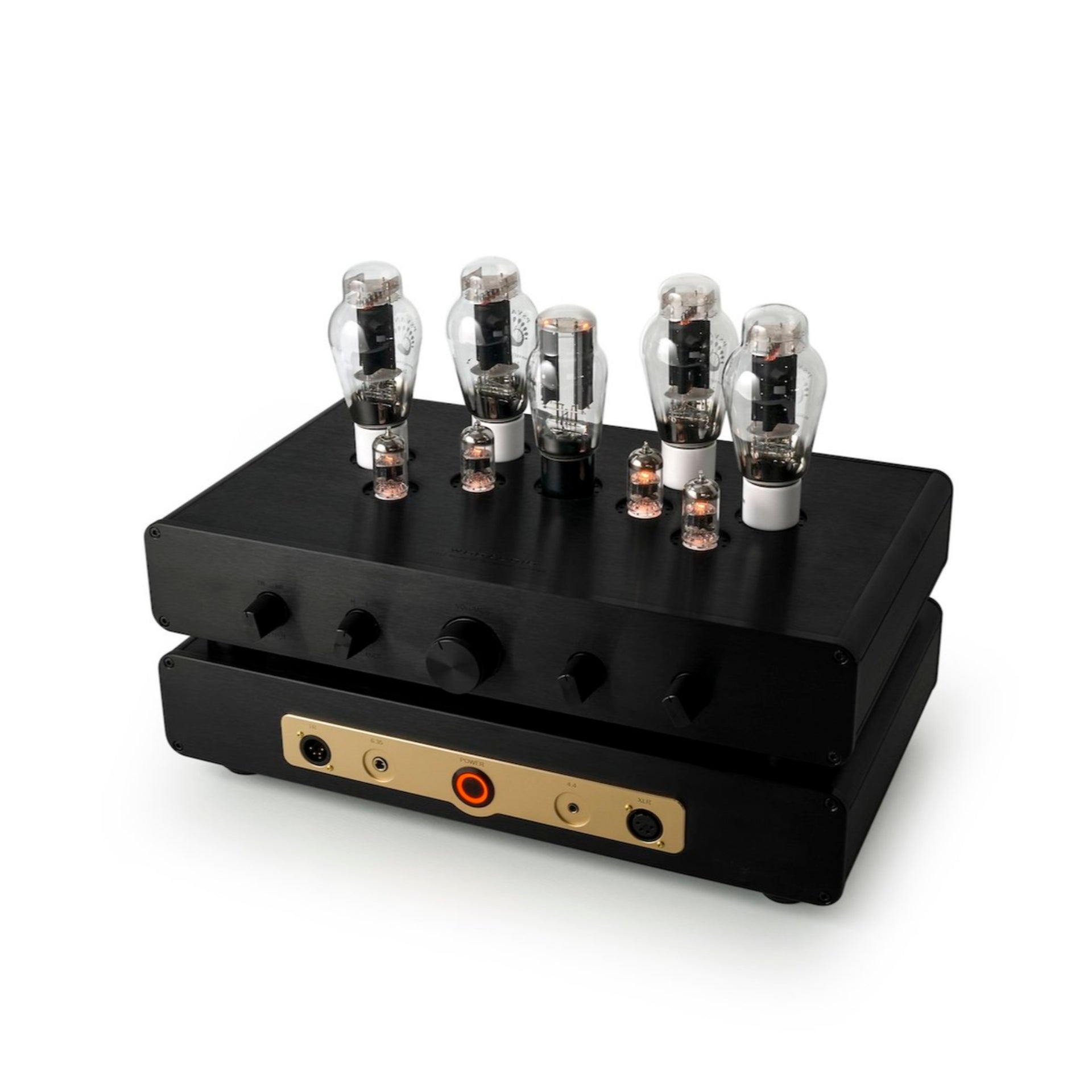

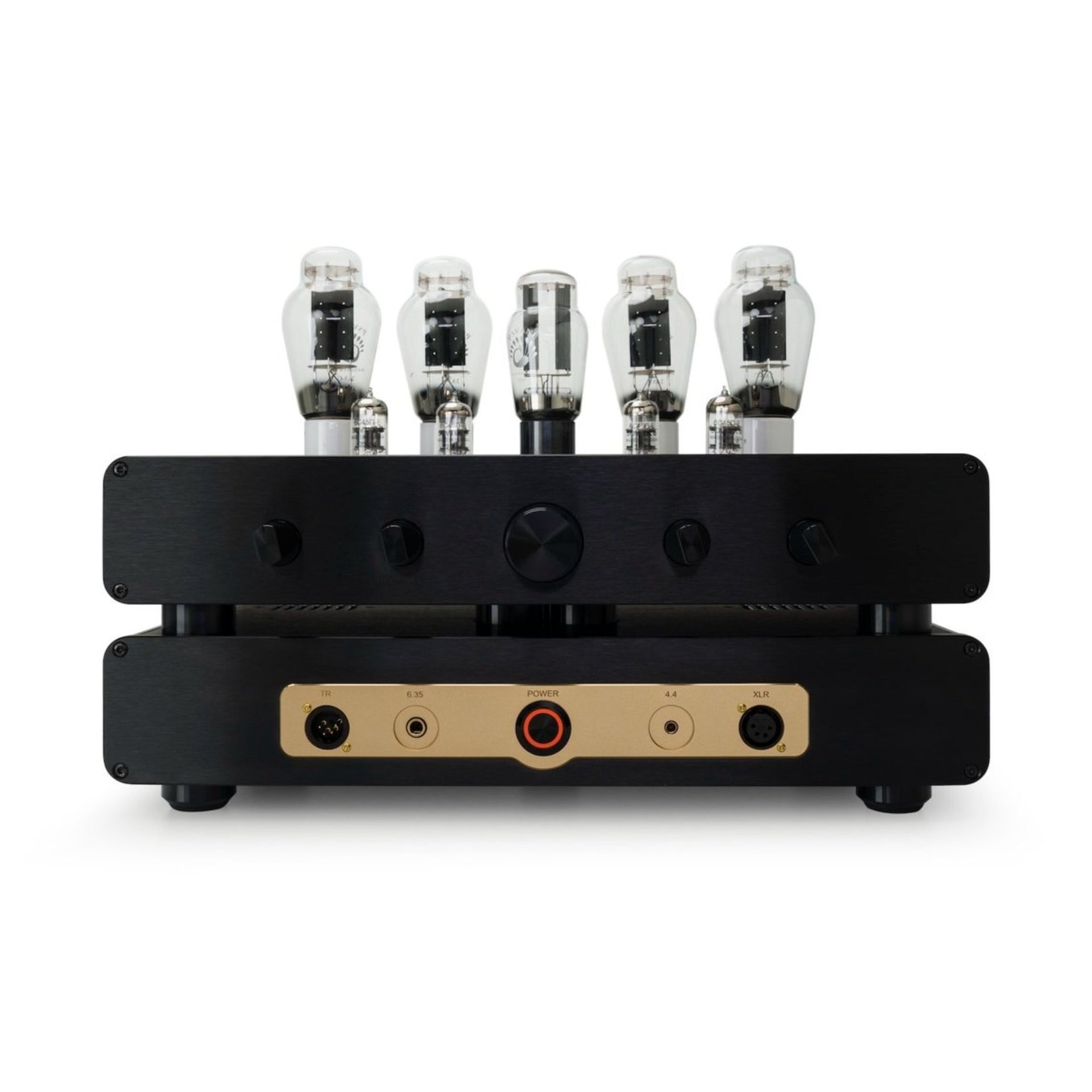

  • Elegant Dual-Chassis Design – Features proprietary Internal Coupling Architecture (ICA) for a clean signal path, reduced interference, and a sleek, minimalist look.

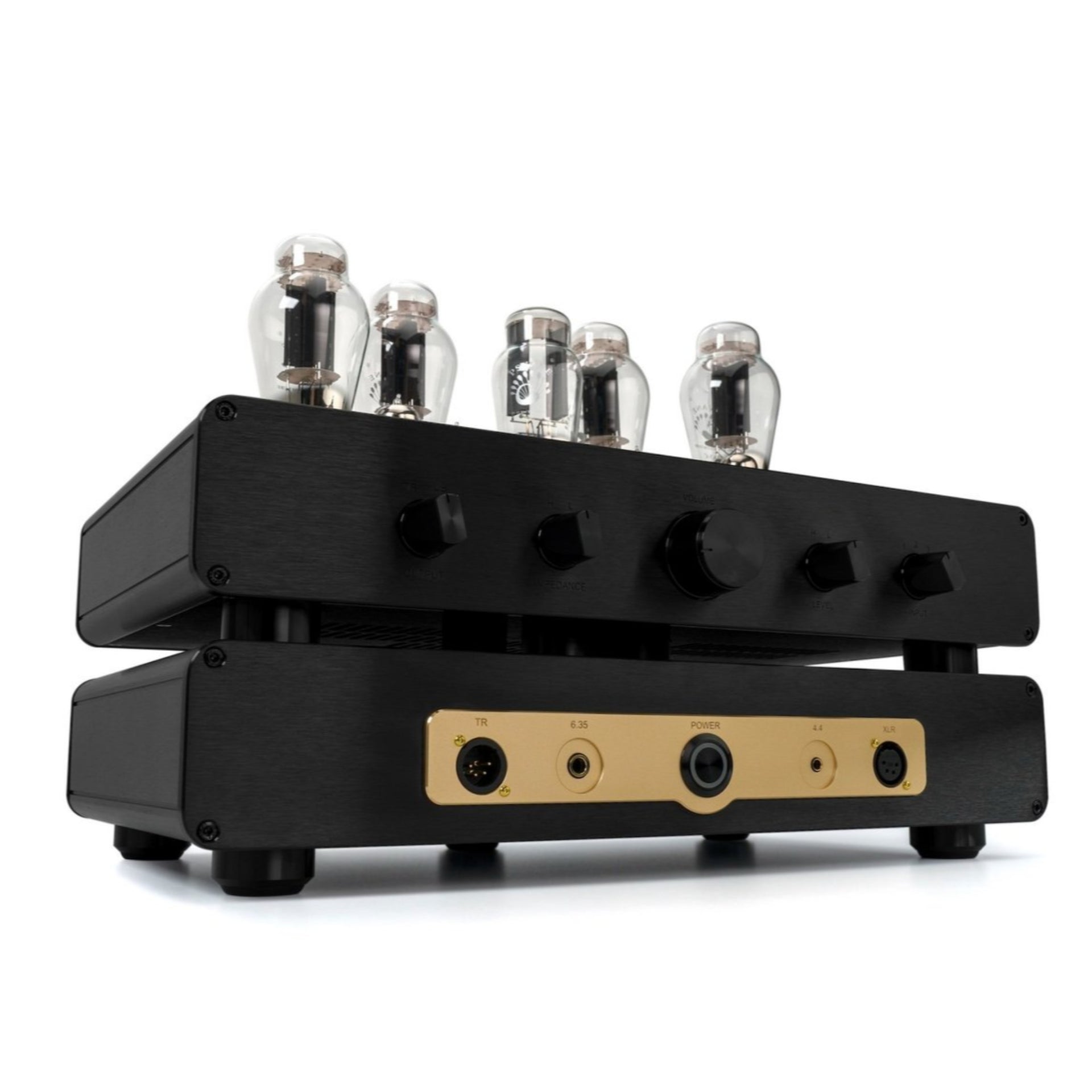

Woo Audio WA33 (2nd Gen) Balanced Headphone Amplifier Specifications
Default Tubes6C45 driver × 4, 2A3 power × 4, 5U4G rectifier × 1
WiringJPS Alumiloy® hook-up and signal wires (JPS wiring)
Amplification DesignFully balanced, Push-Pull, Class-A
Tube SocketsPolytetrafluoroethylene (PTFE)
Volume ControlTKD 4-channel balanced smooth potentiometer
ConstructionTransformer-coupled, Point-to-Point wiring
ArchitectureInternal Coupling Architecture (ICA)

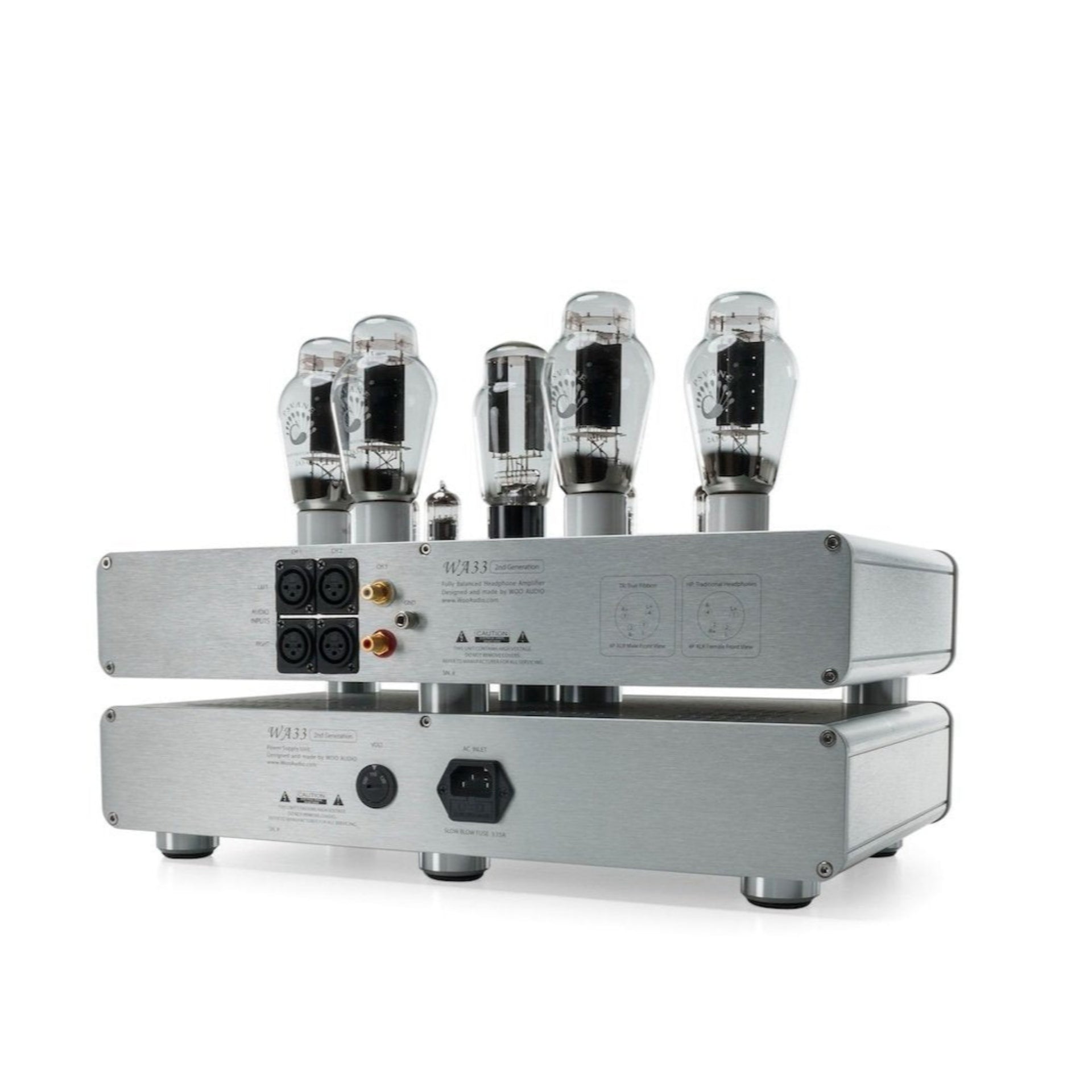

InputsXLR × 2, RCA × 1
OutputsDual 3-pin XLR (L/R), 4-pin XLR × 1, 1/4" (6.3mm), XLR preamp × 1
Output SelectionUser selectable: preamp or headphone
Headphone SettingsUser selectable HI/LO impedance and HI/LO level
Supported Headphone Impedance8 – 600 Ohms
Frequency Response10Hz – 60kHz (–2dB)
Power OutputUp to 10W per channel @ 32 Ohms
Signal-to-Noise Ratio> 95dB
THD< 0.05% @ 1kHz
ChassisAnodized aluminum, available in black or silver
Self-BiasingYes, compatible with various tubes
Power Consumption150W
VoltageAC 100–120V 60Hz or AC 220–240V 50Hz (factory configured)
Dimensions (W × D × H)17.5" × 12" × 7.5" (without tubes)
Weight53 lbs (Standard), 56 lbs (Elite Edition)
Color OptionsBlack, Silver
  • 1 x WA33 2nd Gen
  • 4 x 2A3 Tube
  • 1 x 5U4G (5U3C) Rectifier Tube
  • 4 x 6C45 Tube
  • 1 x Quick Start Guide
