Price:
$519
*Check with our team or your local store for availability.
We guarantee that all of our stock is 100% genuine,
New Zealand sourced stock, with full local warranty.

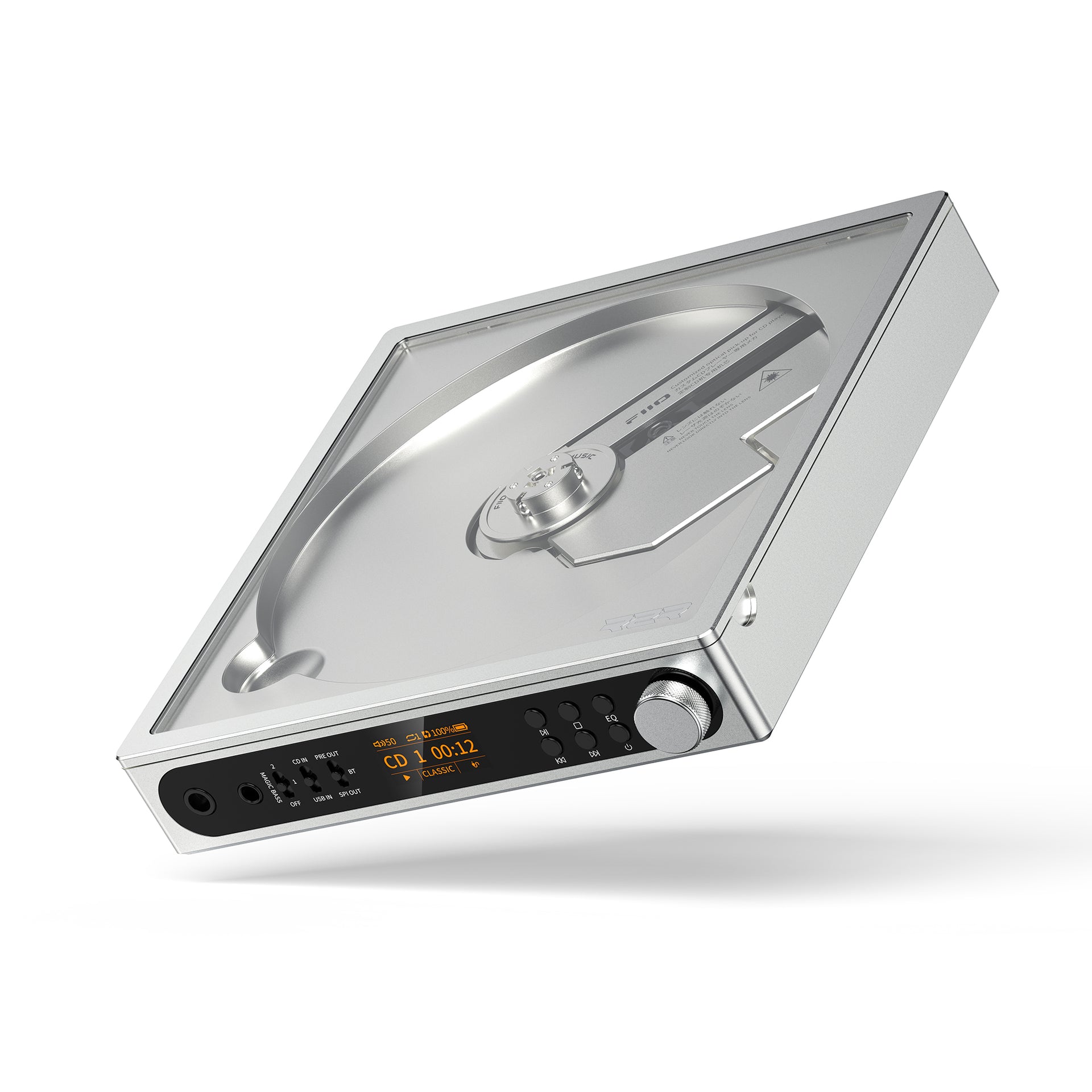

Colour: Silver

Description

  • Fiio self-developed R2R DAC
  • 4700mAh, 3.85V high-voltage lithium battery
  • Up to 7 hours of playback
  • 3.5mm single-ended and 4.4mm fully-balanced headphone outputs
  • 3.5mm and 4.4mm line-out modes
  • USB DAC mode
  • Bluetooth transmit mode with aptX/aptX-HD/aptX-LL/aptX-Adaptive
  • Optical and coaxial digital outputs
  • THD+N < 0.030% (1kHz/0dB at 32Ω)
  • Signal-to-noise ratio ≥112dB (A-weighted)
  • ESP anti-vibration switch

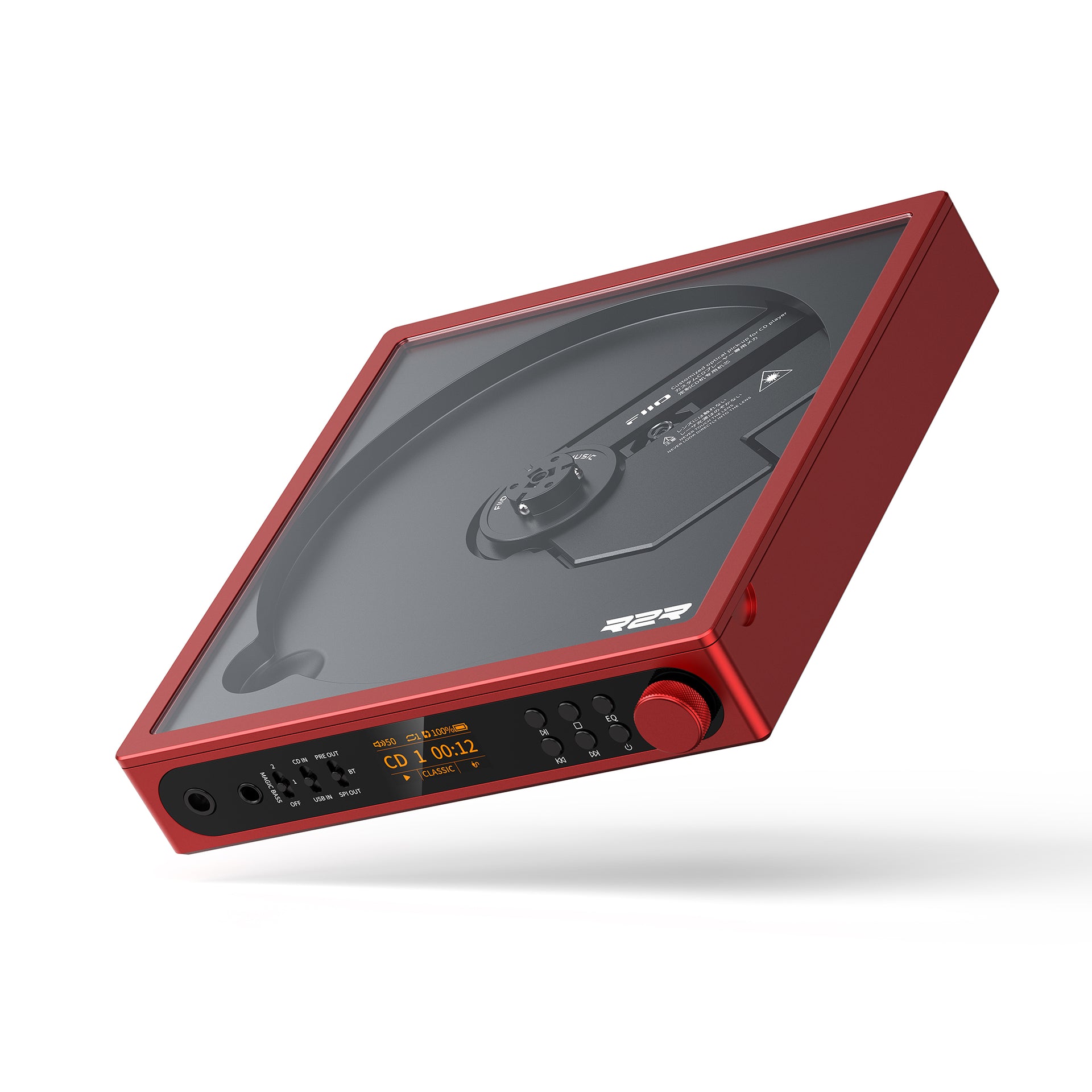

  • Transparent window design with tempered glass
  • Aluminum alloy body
  • Desktop mode support
  • 0.96-inch LCD display
  • Supports CD-R formats: FLAC/WAV/WMA/AAC/MP3
  • Approx. 7-hour battery life
  • Fast-charging support via PD3.0
FiiO DM15 R2R Portable Bluetooth CD Player – Specifications
Dimensions5.67 × 5.39 × 1 in (144 × 137 × 25.5 mm)
Weight1.04 lbs (471.5 g)
Operating Modes
CD Play / USB DAC / Bluetooth Transmit / Optical Out / Coaxial Out

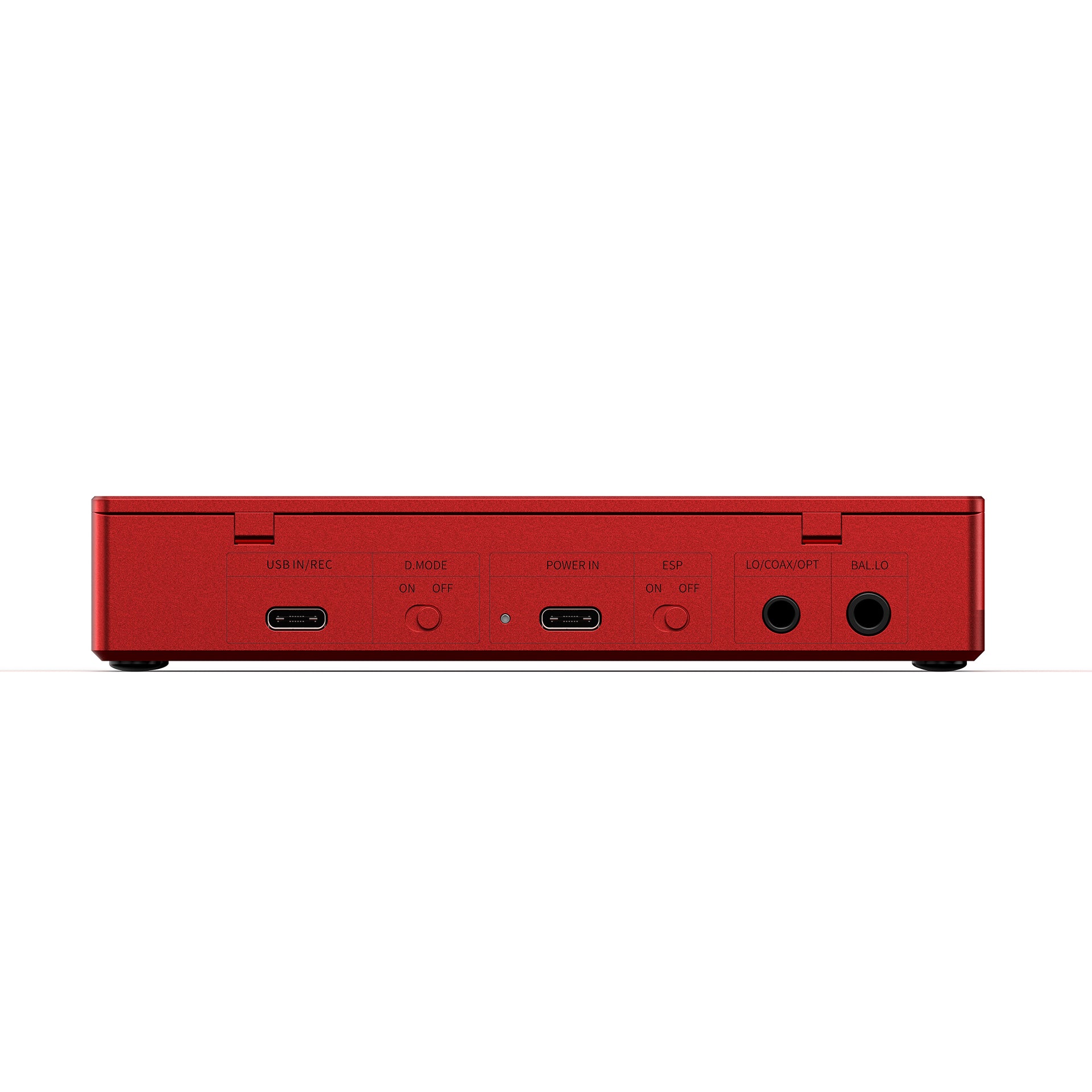

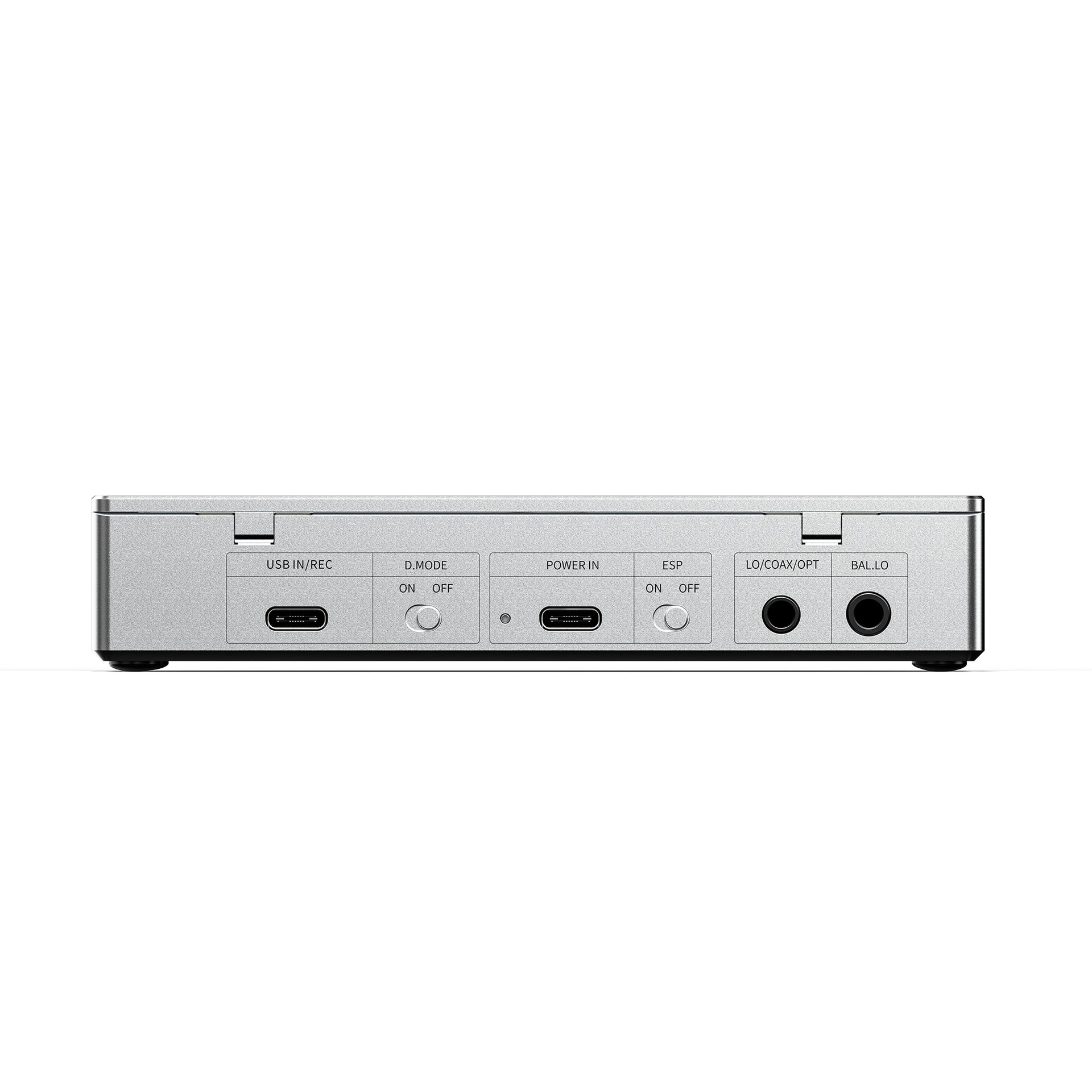

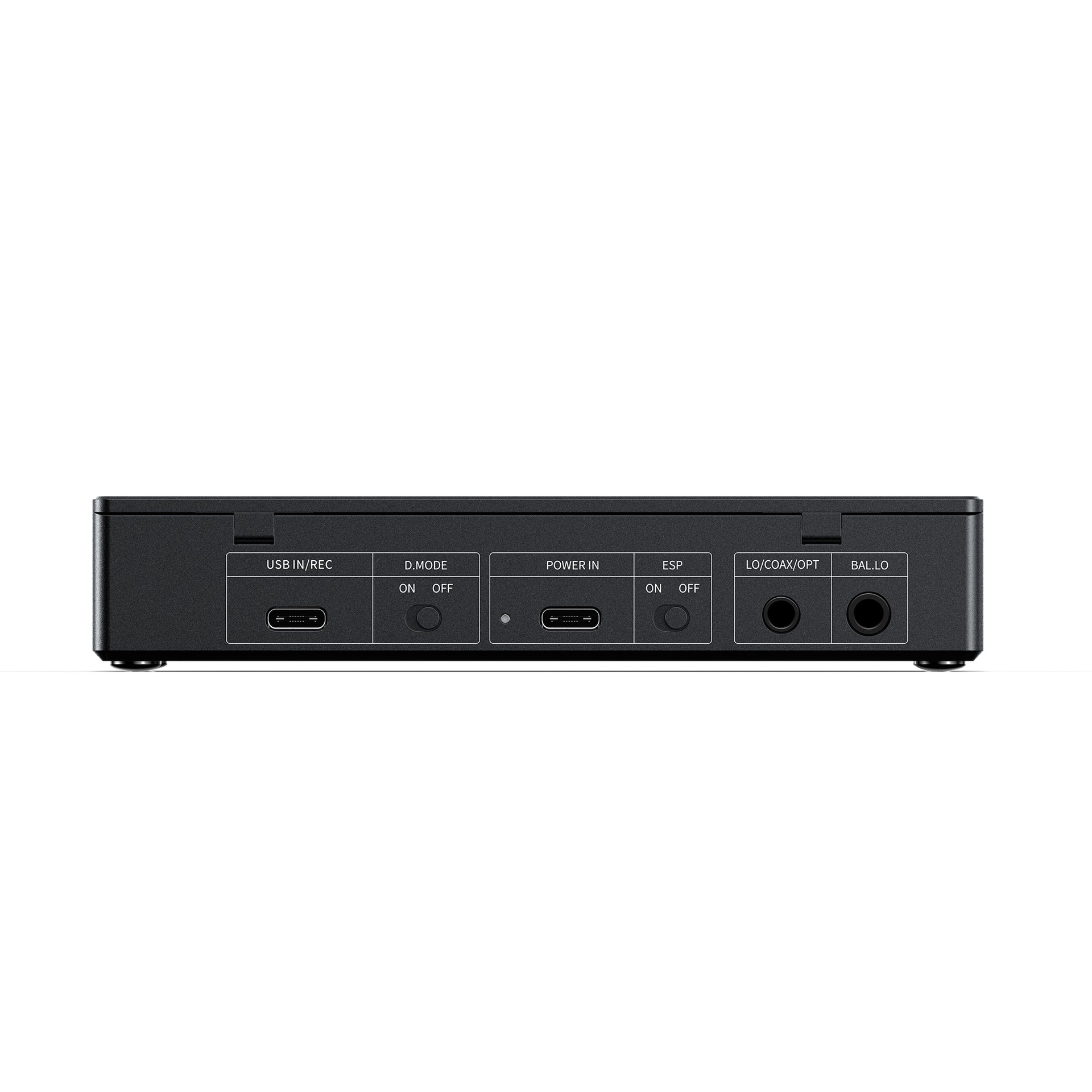

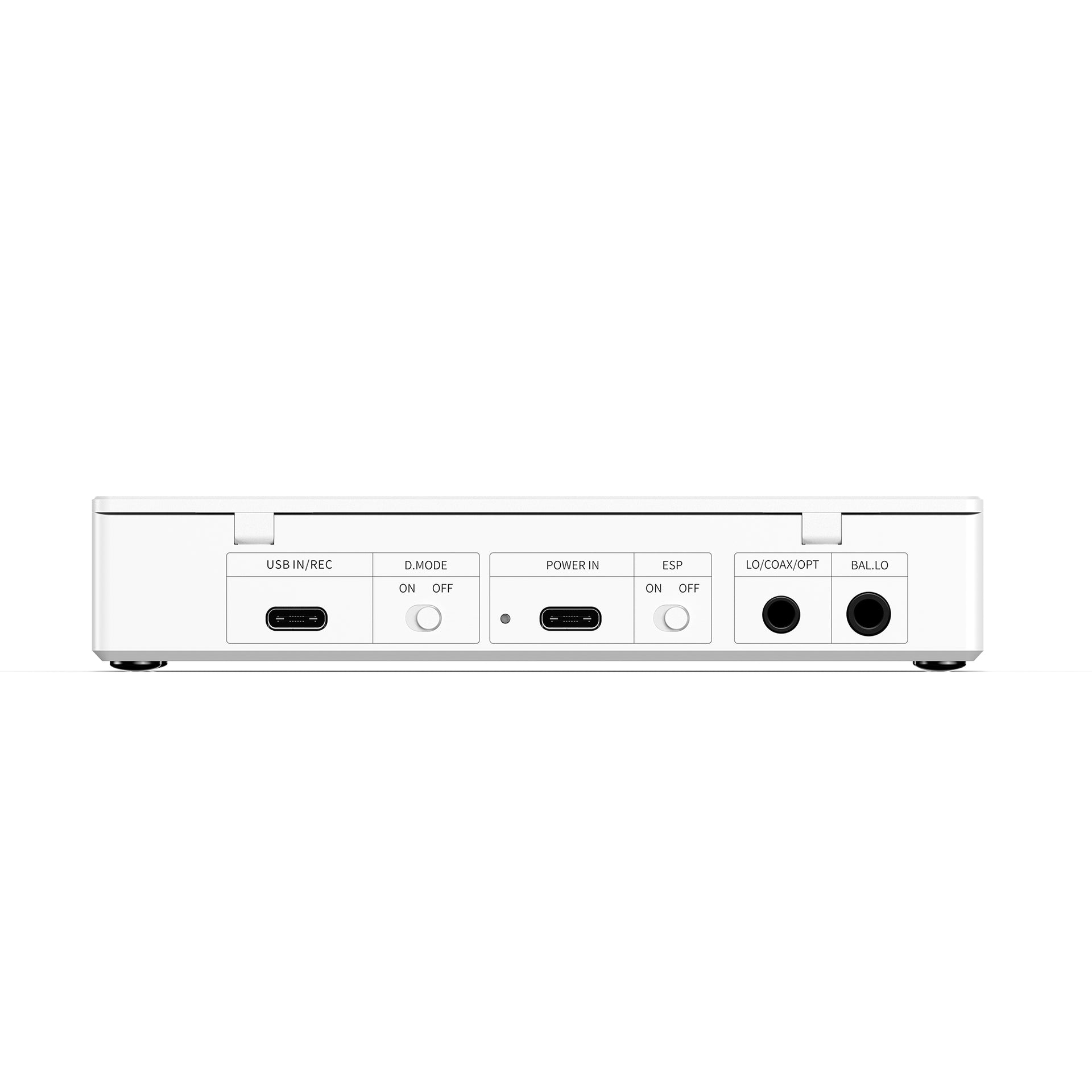

Inputs & Outputs
Headphone Outputs3.5mm single-ended, 4.4mm balanced
Line Outputs3.5mm LO/COAX/OPT (3-in-1), 4.4mm balanced LO
Supported CD-R FormatsFLAC, WAV, WMA, AAC, MP3
Core Components
DACFiiO self-developed R2R DAC
Headphone Amplifier ChipsSGM8262 × 2
Bluetooth ChipQCC3095
USB ChipSPV5048
Display0.96-inch LCD
Battery & Power
Battery Capacity4700 mAh
Battery Life≥7 hours
Rated Input5V 2A (USB-C)
ChargingSupports PD2.0 / PD3.0 fast charging
Charging Time~2 hours (PD3.0)
Digital Performance
USB DAC384kHz/32bit, DSD256 (Native)
Coaxial Output192kHz/24bit
Optical Output96kHz/24bit
Headphone Output Power
Single-Ended (Desktop)≥315mW + 315mW (32Ω, THD+N <1%)
Single-Ended (Portable)≥220mW + 220mW (32Ω, THD+N <1%)
Balanced (Desktop)≥1150mW + 1150mW (32Ω, THD+N <1%)
Balanced (Portable)≥815mW + 815mW (32Ω, THD+N <1%)
Line-Out Performance
SE Line-Out 1 (Desktop)3.3 Vrms + 3.3 Vrms
SE Line-Out 2 (Portable)2.8 Vrms + 2.8 Vrms
Balanced Line-Out 3 (Desktop)6.5 Vrms + 6.5 Vrms
Balanced Line-Out 4 (Portable)5.4 Vrms + 5.4 Vrms
Audio Specs
Signal-to-Noise Ratio≥112 dB (A-weighted)
Background NoisePO < 8.5 µV, BAL < 15.8 µV (A-weighted)
THD+N<0.030% (1 kHz / 0 dB @ 32Ω)
  • DM15R2R host
  • Infrared remote control
  • USB-A to USB-C charging/data cable
  • Quick start guide
  • 3.5mm coaxial adapter cable
  • After-sales service card
